Power

30-55 kw

Log Dia.

1500-2500 mm

Max. Cut Height

1200 -2000 mm

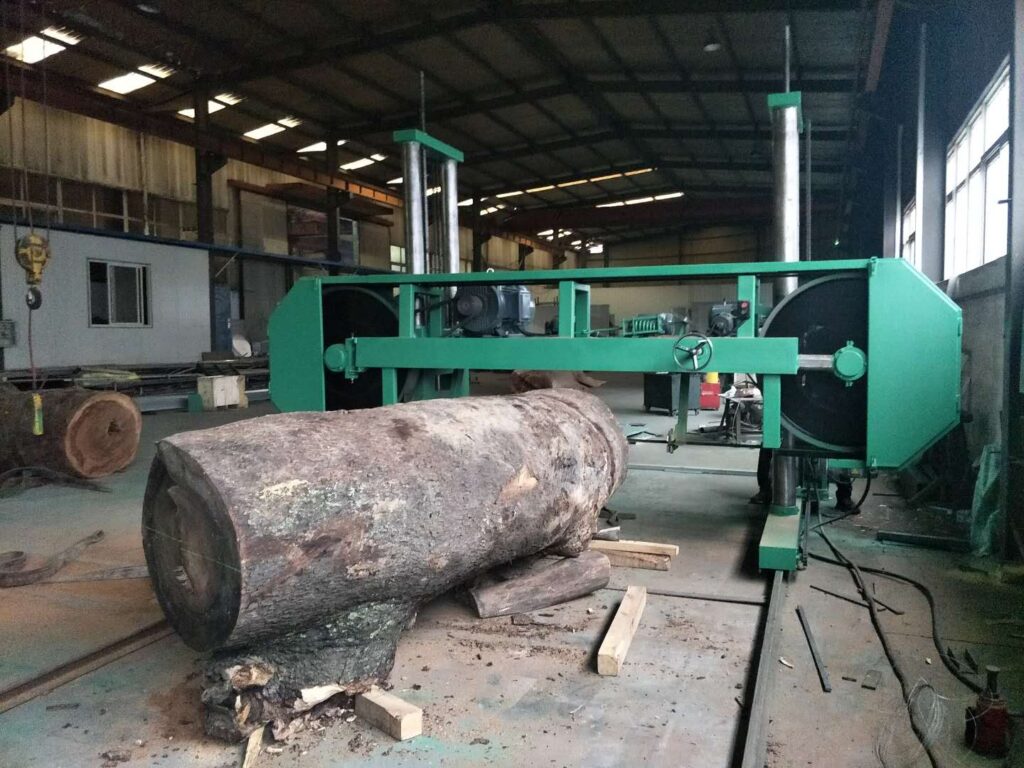

Horizontal Band saw | MJ378

Price:

This machine is applicable to processing of large-diameter logs, square wood and tree roots (φ1,000mm–φ2,500mm). Able to automatically forward & backward and CNC Lifting with stepless speed regulation function. Cutting wood plate has the uniform thickness, with high flatness and small thickness error. Have simple and reasonable structure to be convenient for installation, debugging and moving.

Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

ItemMJ378-1500MJ378-2000MJ378-2500
Max. Sawing Diameter1500mm2000mm2500mm
Max. Sawing Length9000mm9000mm9000mm
Max. Sawing Thickness450mm450mm450mm
Max. Sawing Height1200mm1500mm2000mm
Saw Wheel Diameter1100mm1100mm1100mm
Saw Wheel Width150mm150mm150mm
Total motor power (380V,50Hz,3phase)42.55KW50.55KW61.3KW
Main Motor Power30KW45KW55KW
Max. Forward Speed4m/min4m/min4m/min
Max. Backward Speed4m/min4m/min4m/min
Saw Blade Size8400×125×1.25mm9400×150×1.25mm10400×150×1.25mm
Track Length (Standard)12000mm12000mm12000mm
Dimensions(L×W×H)3800×2000×2500mm4300×2000×3000mm4800×2000×3000mm
Weight4000kgs5000kgs6000kgs

Operation video

Related Product

FAQ

Your woodworking machinery Success Starts with Nanyang

At Nanyang, we strive to provide superior services and solutions that surpass your expectations. Let us find the ideal woodworking machinery solution for your project.

We will respond to you within 24 hours after receiving your inquiry.

We are one of the factories with production, sales, after-sales. Real factory price and service.

Our main products are: wood band saws and carriages; wood drying equipment. Other products are: saw blade sharpening machines; saw blade rolling machines, saw blade welding machines, etc.

Woodworking band saws and sports cars involve application areas: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises. The application of wood drying kilns involves: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises.

Fully customizable, we have R&D team.

Annual output value is 50 million yuan.

The company currently has 100 employees, including more than 20 professional and technical personnel.

We will conduct corresponding tests after each process is completed. For the final product, we will do 100% comprehensive inspection according to customer requirements and industry standards.

When quoting, we will confirm the transaction method with you, FOB, CIF, CNF or other methods. Generally, customers pay 30% advance payment in advance, and the balance is paid before the factory ships. We mostly pay by T/T, of course, L/C is acceptable.

Usually we ship by sea, but railway and land transportation are also very convenient.

Nanyang Machinery has more than 2,000 users in China and around the world. In Southeast Asia (Indonesia, the Philippines, Malaysia, Myanmar, Vietnam and Laos), Africa (Gabon, Benin, Congo, Togo, Nigeria, Angola, Ghana), South America (Chile, Uruguay, Brazil, Suriname, Guyana), Ukraine, Romania, Kazakhstan) and Japan, North Korea and more than 30 other countries, it enjoys a very good reputation among users, furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other dry wood products companies.
