Power

18.5 kw

Log Dia.

900 mm

Max. Cut Width

650 mm

Horizontal Band Sawmill | CN-70

Price:

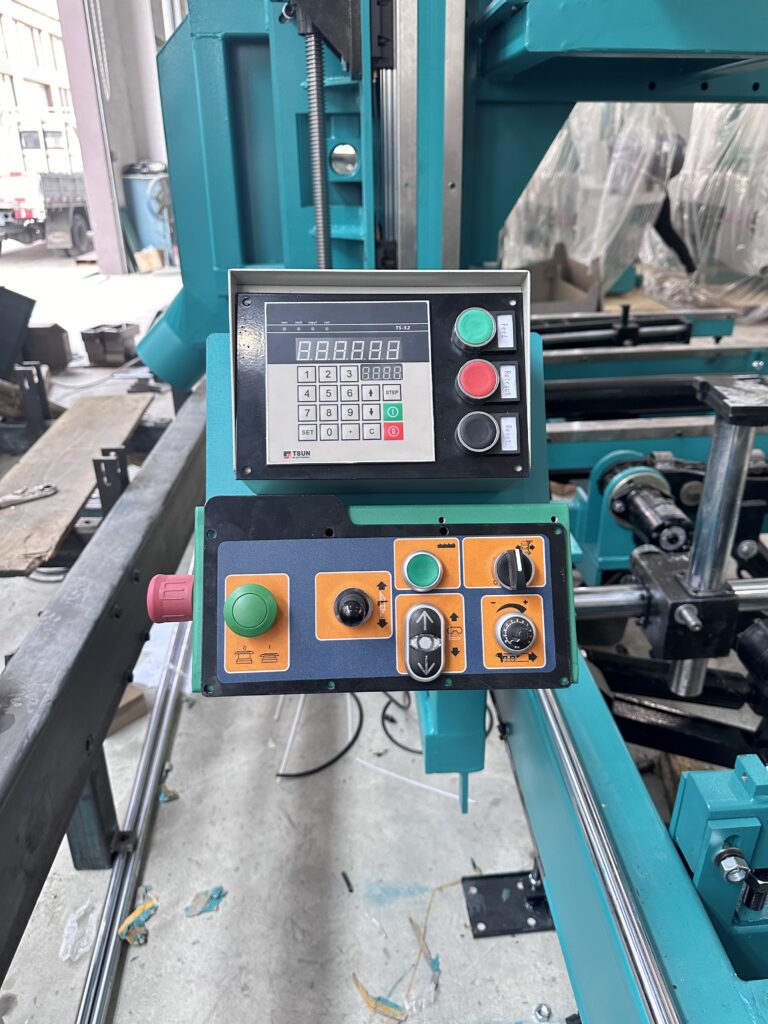

  • Use the PLC programming, converter control and digital display control interfaces.
  • Utilize the chain & ball screw to carry out the operation, with high processing precision; have the programmable control function to achieve the stable operation.
  • Own the hydraulic tension system to ensure that the saw blade can be in the best tension state, so as to lengthen the service life of the saw blade.
  • Realize the automatic cooling, lubrication and dust removal system, adopt the one step mode
  • With high safety performance, the whole sawing process is automatic, safe, reliable and rapid cutting speed.
  • It is convenient to assemble, debug, and move with appropriate structure and small covering area
  • It realizes automatic blade grinding and filing with MF1115 saw sharpening machine
Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

Specifications and ModelCN-70
Maximum Cutting Diameter900mm
Maximum Cutting Length4000mm
Saw Wheel Diameter600mm
Maximum Cutting Height390mm
Maximum Cutting Width650mm
Saw Blade Speed: Standard for Common Wood20m/s
Total Motor Power (380V, 50Hz, 3phase)26.2kw
Main Motor Power18.5kw
Lifting Motor Power1.1kw
Forward and Backward Motor Power1.1kw
Hydraulic Rolling System Power5.5 Kw
Working pressure of hydraulic system in feeding 7Mpa
Max. Forward & Backward Speed16m/min
Saw Blade Size4670×34×0.9mm
Track Length (Standard)6500mm
Dimensions7300×3200×2700mm
Total Weight2600kg

Operation video

Related Product

FAQ

Your woodworking machinery Success Starts with Nanyang

At Nanyang, we strive to provide superior services and solutions that surpass your expectations. Let us find the ideal woodworking machinery solution for your project.

We will respond to you within 24 hours after receiving your inquiry.

We are one of the factories with production, sales, after-sales. Real factory price and service.

Our main products are: wood band saws and carriages; wood drying equipment. Other products are: saw blade sharpening machines; saw blade rolling machines, saw blade welding machines, etc.

Woodworking band saws and sports cars involve application areas: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises. The application of wood drying kilns involves: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises.

Fully customizable, we have R&D team.

Annual output value is 50 million yuan.

The company currently has 100 employees, including more than 20 professional and technical personnel.

We will conduct corresponding tests after each process is completed. For the final product, we will do 100% comprehensive inspection according to customer requirements and industry standards.

When quoting, we will confirm the transaction method with you, FOB, CIF, CNF or other methods. Generally, customers pay 30% advance payment in advance, and the balance is paid before the factory ships. We mostly pay by T/T, of course, L/C is acceptable.

Usually we ship by sea, but railway and land transportation are also very convenient.

Nanyang Machinery has more than 2,000 users in China and around the world. In Southeast Asia (Indonesia, the Philippines, Malaysia, Myanmar, Vietnam and Laos), Africa (Gabon, Benin, Congo, Togo, Nigeria, Angola, Ghana), South America (Chile, Uruguay, Brazil, Suriname, Guyana), Ukraine, Romania, Kazakhstan) and Japan, North Korea and more than 30 other countries, it enjoys a very good reputation among users, furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other dry wood products companies.
