Power
22kw
Log Dia.
900 mm
Max. Cut Width
900 mm

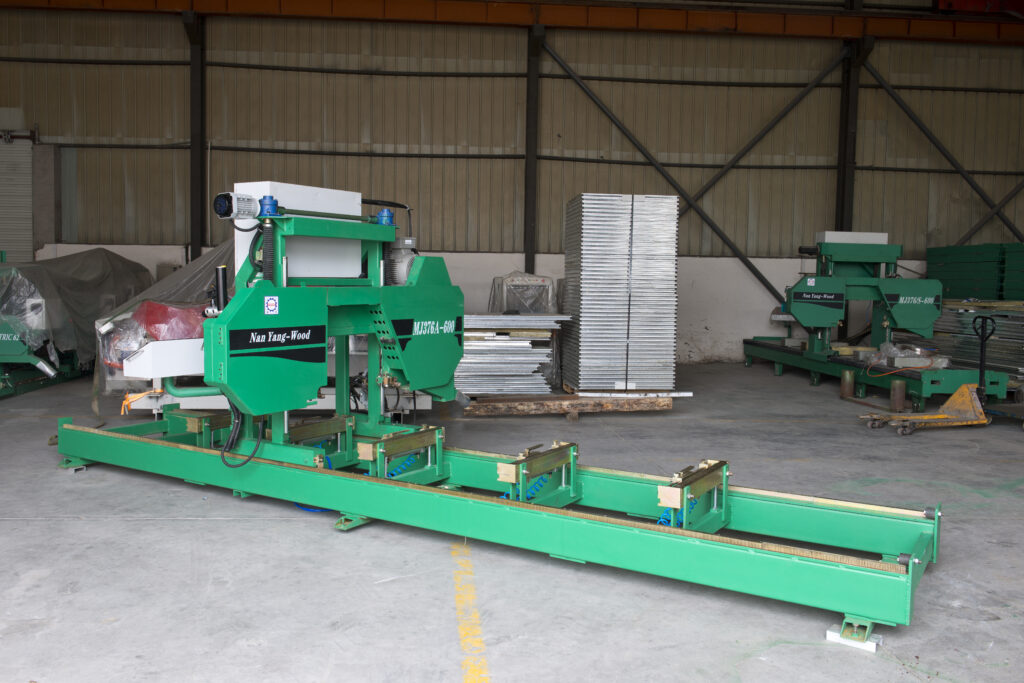

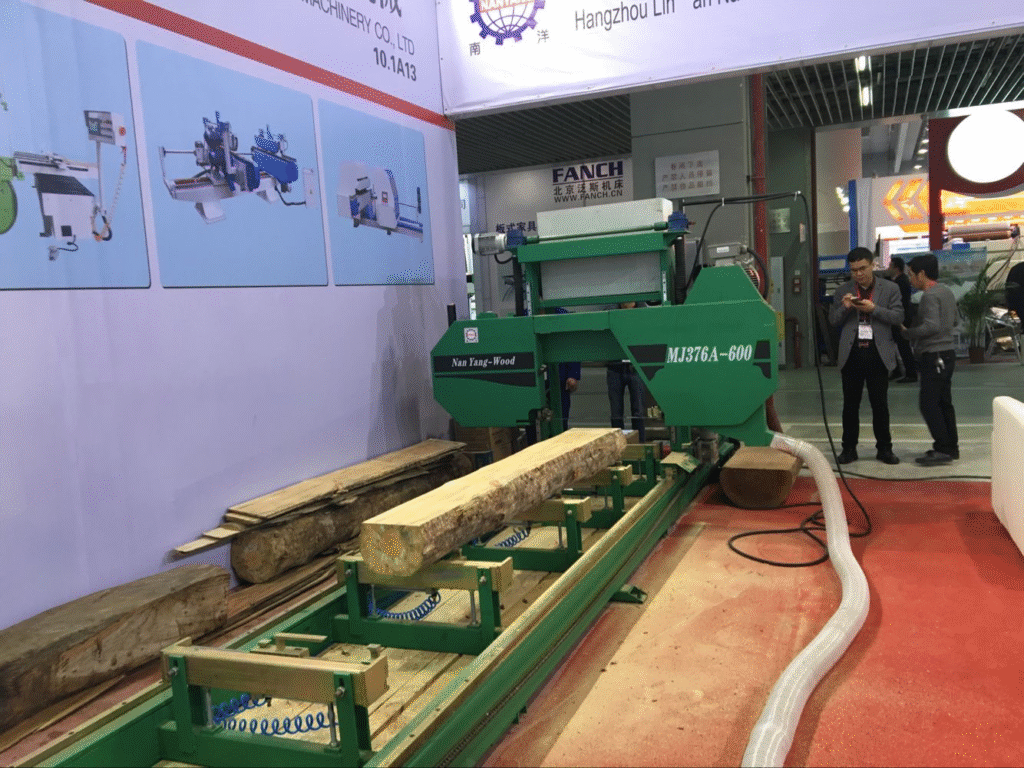

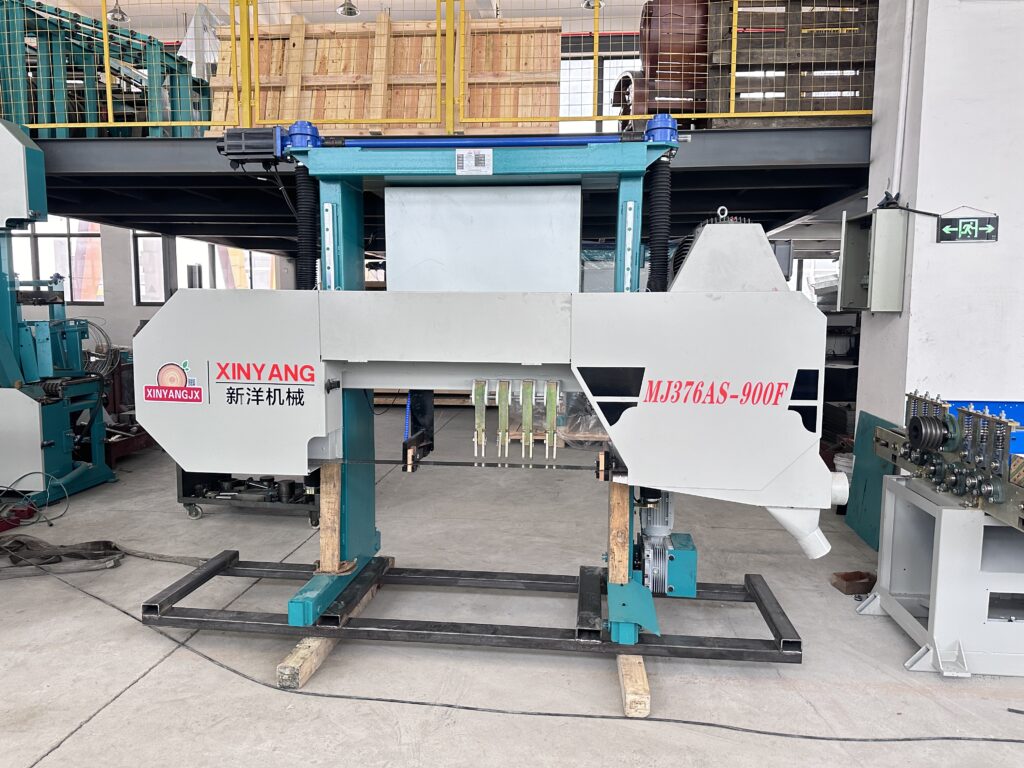

Horizontal Band saw | MJ376AS
Price:

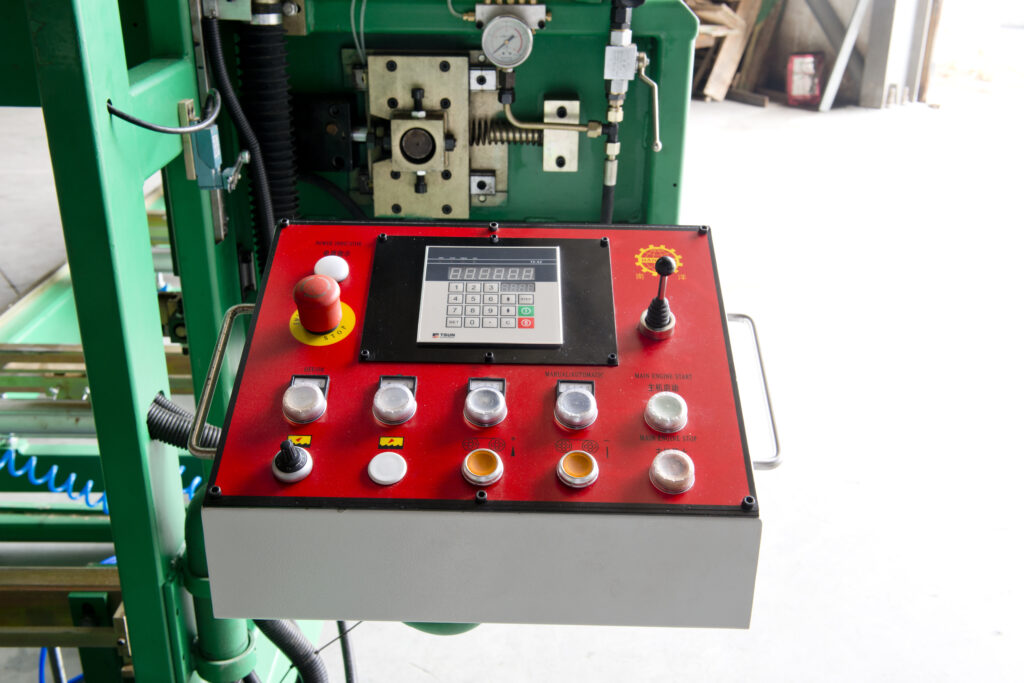

- Use the PLC programming, converter control and digital display control interfaces.
- Utilize the chain & ball screw to carry out the operation, with high processing precision; have the programmable control function to achieve the stable operation.
- Own the hydraulic tension system to ensure that the saw blade can be in the best tension state, so as to lengthen the service life of the saw blade.
- Realize the automatic cooling, lubrication and dust removal system, adopt the one step mode
- With high safety performance, the whole sawing process is automatic, safe, reliable and rapid cutting speed.
- It is convenient to assemble, debug, and move with appropriate structure and small covering area
- It realizes automatic blade grinding and filing with MF1115 saw sharpening machine
|
1-Year Warranty |
Related Parts & Accessories
Add a Short Title Here
Use this space to add a short description. It gives enough info to earn a click.
Add a Short Title Here
Use this space to add a short description. It gives enough info to earn a click.
Add a Short Title Here
Use this space to add a short description. It gives enough info to earn a click.
Add a Short Title Here
Use this space to add a short description. It gives enough info to earn a click.
Add an overline
Craft a captivating title for this section to attract your audience.
About This Product
| Specifications and Model | MJ376AS-600 | MJ376AS-900 |
|---|---|---|
| Max. sawing diameter | 600mm | 900mm |
| Max. sawing length | 4400mm | 4400mm |
| Max. sawing height | 500mm | 850mm |
| Max. Sawing width | 600mm | 900mm |
| Saw Wheel Diameter | 654mm | 654mm |
| Saw Wheel Width | 95 mm | 95 mm |
| Blade Speed: Standard for Common Wood | 750 r/min | 840 r/min |
| Total Motor Power (380V, 50Hz, 3phase) | 20.7kw | 24.6kw |

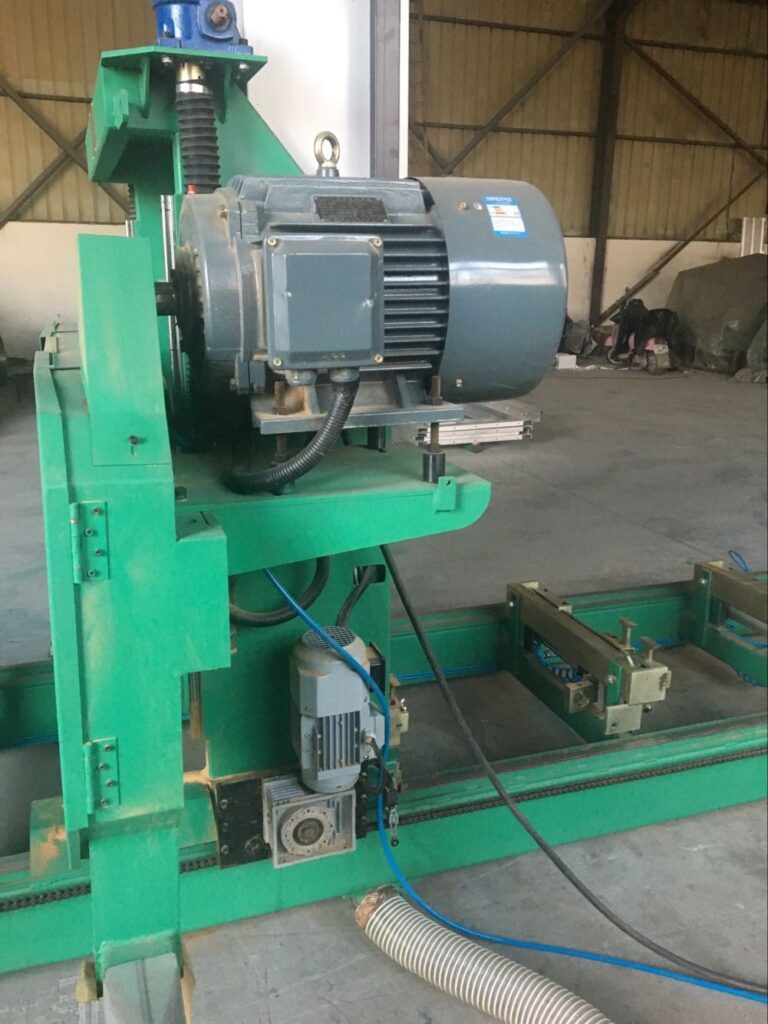

| Main Motor Power | 18.5kw | 22kw |
| Lifting Motor Power | 1.1kw | 1.1kw |
| Forward and Reverse Motor Power | 1.1kw | 1.5kw |
| Max. Cutting Forward Speed | 20m/min | 24m/min |
| Max. Cutting Backward Speed | 26m/mim | 30m/mim |
| Hardwood cutting speed | 3—5m/min | 3—5m/min |
| Softwood sawing forward speed | 7—9m/min | 7—9m/min |
| Blade Dimensions | 5080×80×0.9mm | 5830×80×0.9mm |

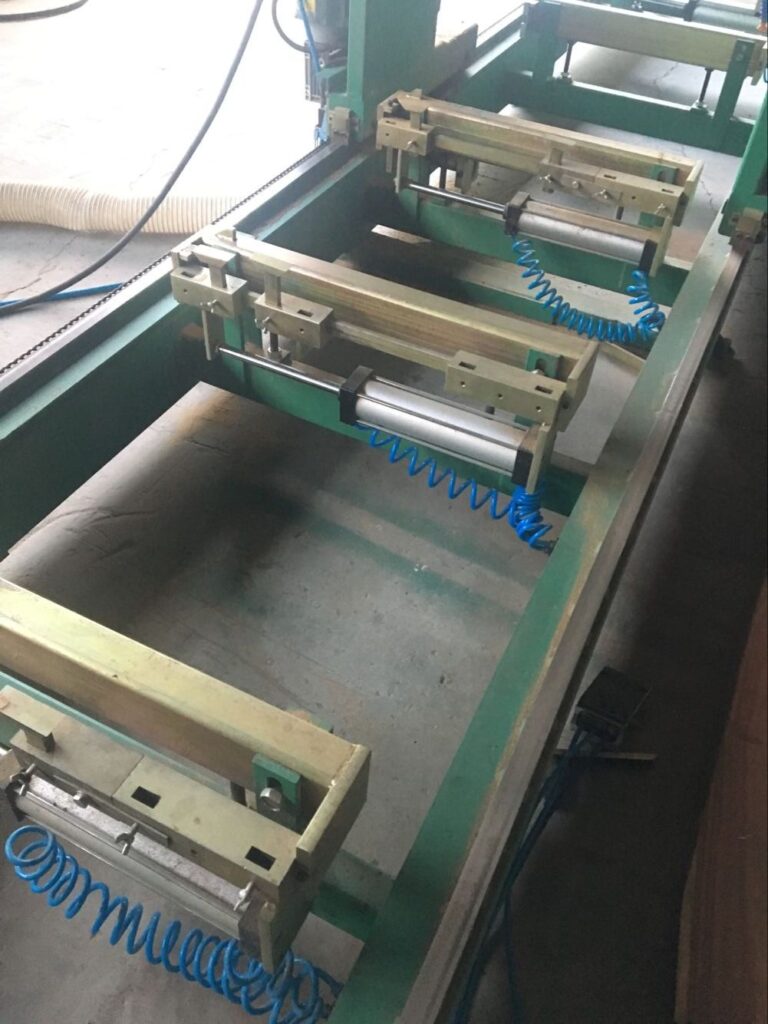

| Track Length (Standard) | 5800mm | 5800mm |
| Rise & Fall size | Servo control | Servo control |
| Sawing control mode | Automatic | Automatic |
| Dimensions | 5800×2300×2300mm | 5800×2700×2500mm |
| Weight | 2000kg | 3000kg |
