Power

9 kw

Saw wheel Dia.

φ473

Max. Cut

400×200mm

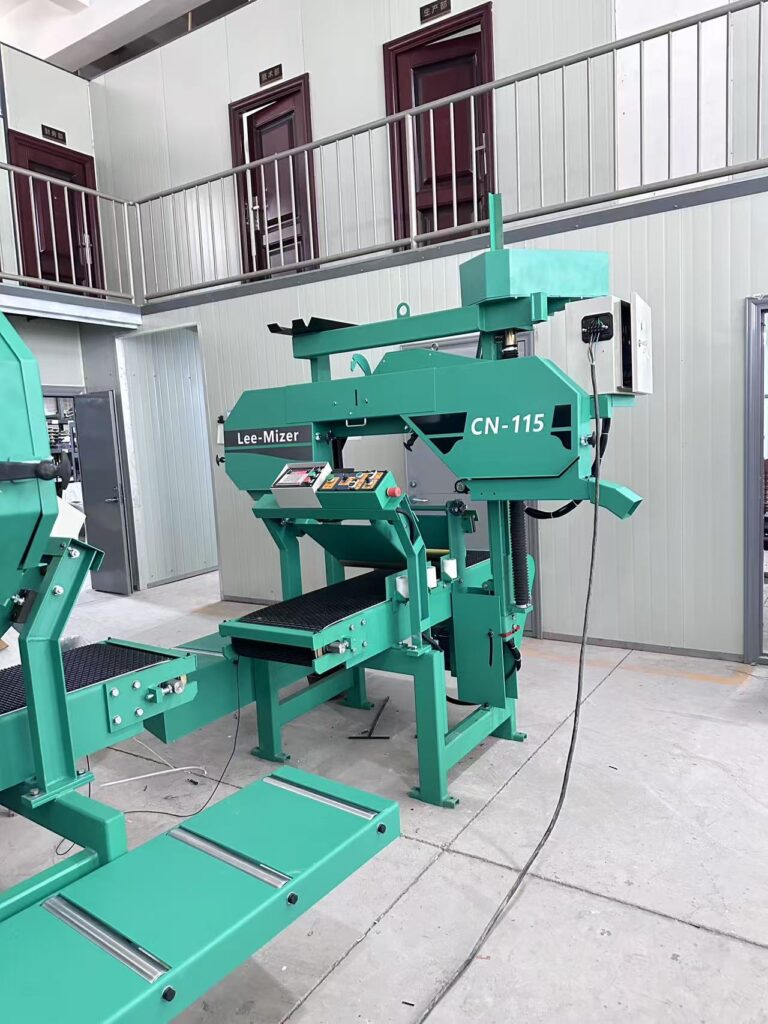

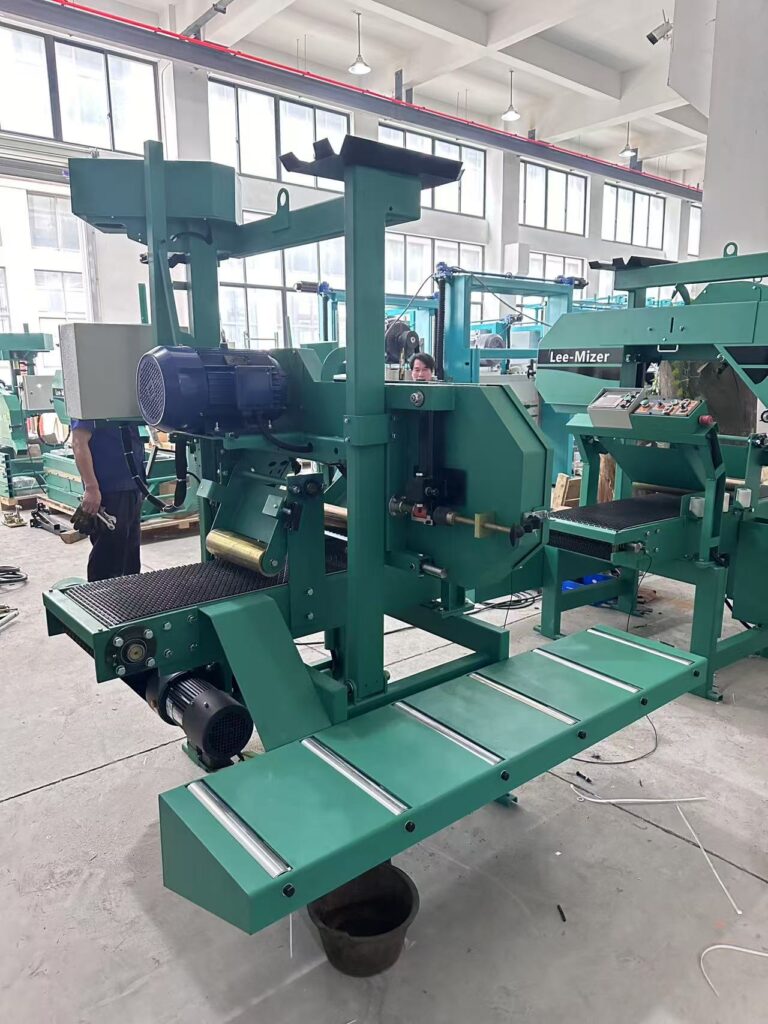

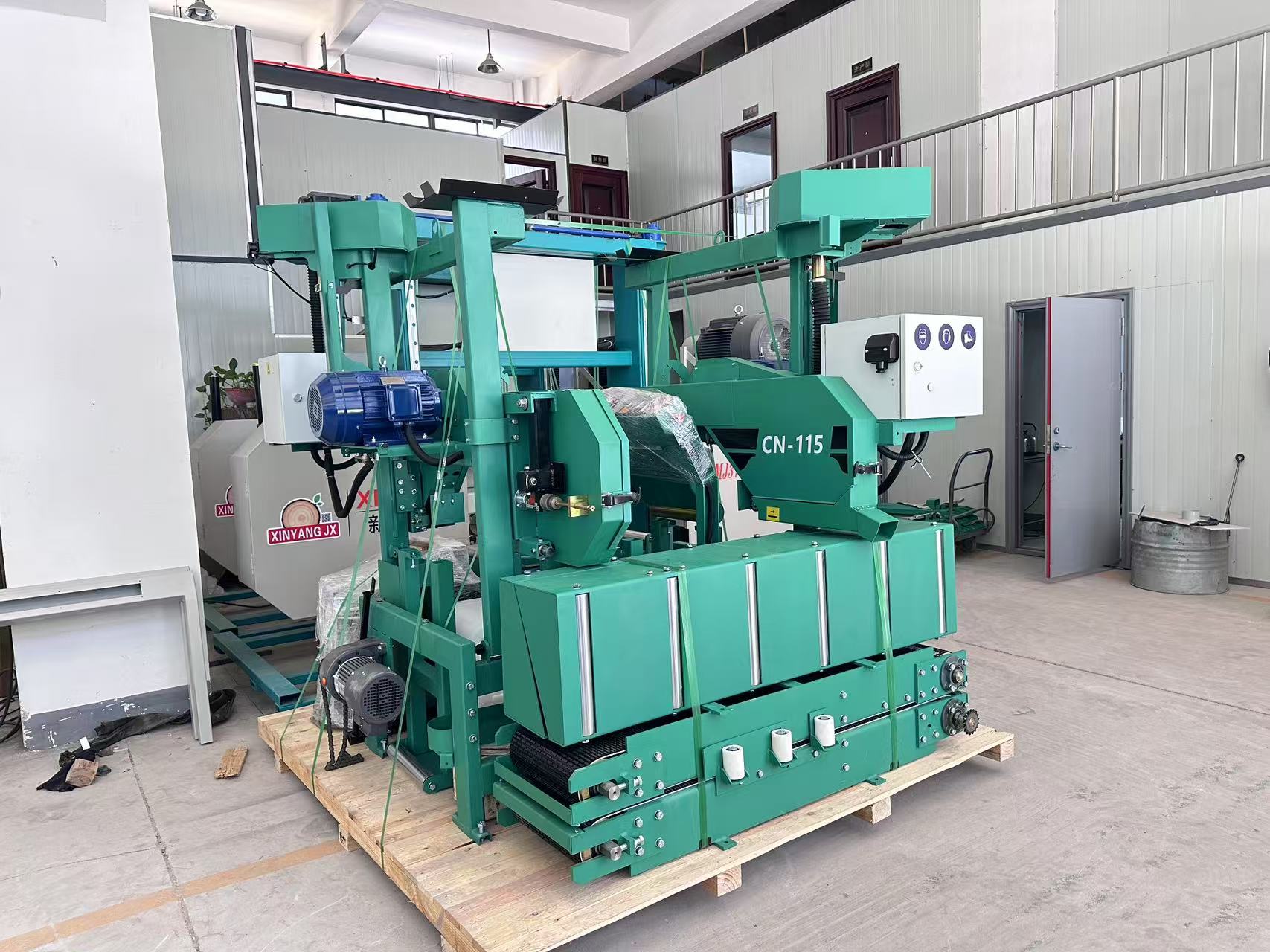

Horizontal Resaw | CN115

Price:

Single head horizontal re-saw with 8° tilting head, steel belt conveyor, angled side rollers, and variable feed.

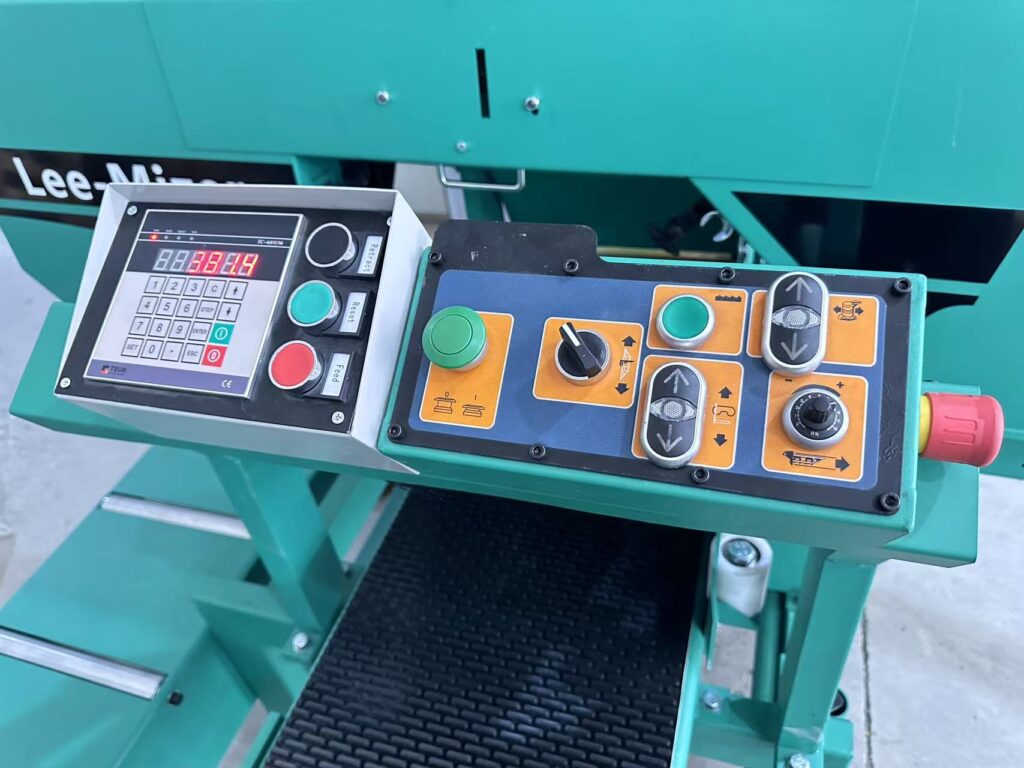

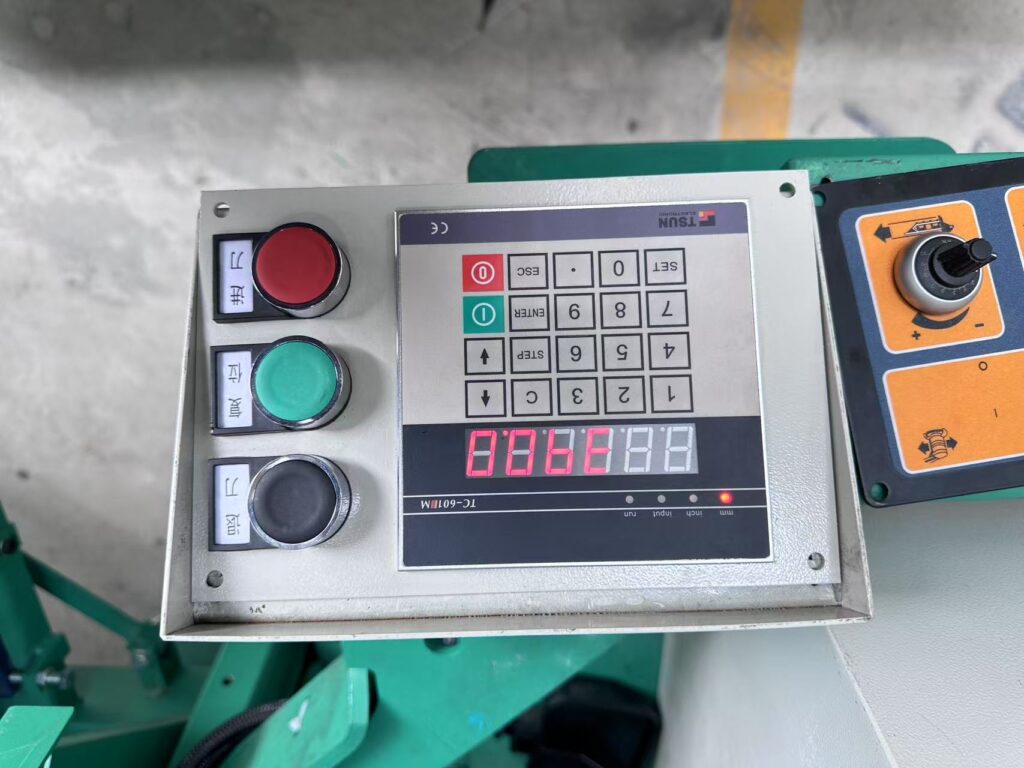

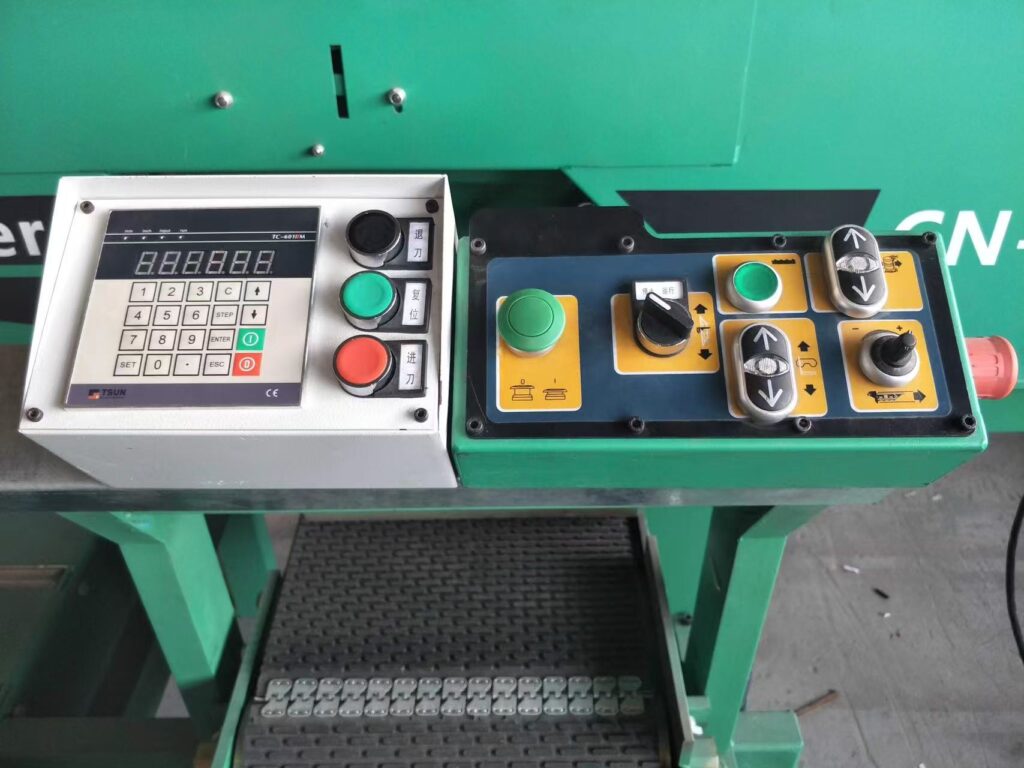

  • Adopts PLC programming, frequency converter control, more convenient & practical.
  • Simple & convenient operation; High precision & accurate.

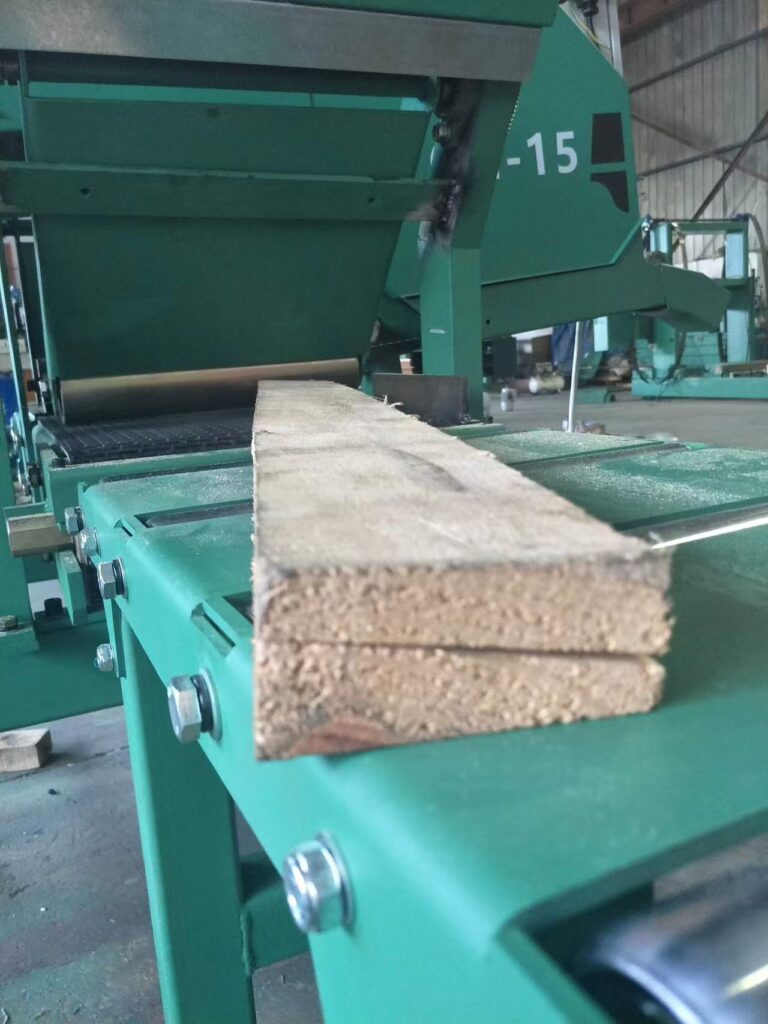

  • It can sawing both angle board and flat board, Multi-purpose.
  • Automatic sawing thickness & angel, high sawing efficiency & smooth.
  • No need professional sawyers, the ordinary workers can operate the machine expertly.
Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

NameSpecification
Max. sawing size400×200mm
Distance from saw blade to table5-200mm
Conveyor belt specification2230×385mm
Saw wheel diameterφ473

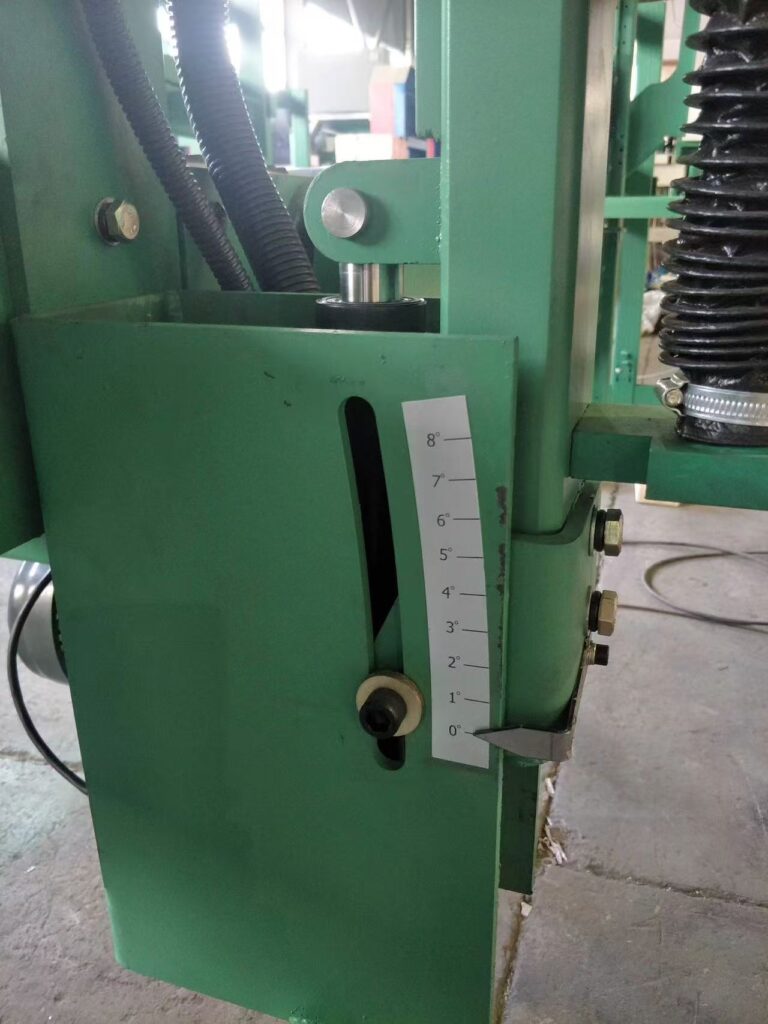

Adjustable Angle0-8°
Feeding speed0-20m/min
Main motor power9kW（380V、50Hz）
Lifting motor power0.55kW
Size of saw blade4005×34×1.05mm
Dimensions（L×W×H）2400×1900×2100
Weight800kg

video

Related Product

FAQ

Your woodworking machinery Success Starts with Nanyang

At Nanyang, we strive to provide superior services and solutions that surpass your expectations. Let us find the ideal woodworking machinery solution for your project.

We will respond to you within 24 hours after receiving your inquiry.

We are one of the factories with production, sales, after-sales. Real factory price and service.

Our main products are: wood band saws and carriages; wood drying equipment. Other products are: saw blade sharpening machines; saw blade rolling machines, saw blade welding machines, etc.

Woodworking band saws and sports cars involve application areas: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises. The application of wood drying kilns involves: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises.

Fully customizable, we have R&D team.

Annual output value is 50 million yuan.

The company currently has 100 employees, including more than 20 professional and technical personnel.

We will conduct corresponding tests after each process is completed. For the final product, we will do 100% comprehensive inspection according to customer requirements and industry standards.

When quoting, we will confirm the transaction method with you, FOB, CIF, CNF or other methods. Generally, customers pay 30% advance payment in advance, and the balance is paid before the factory ships. We mostly pay by T/T, of course, L/C is acceptable.

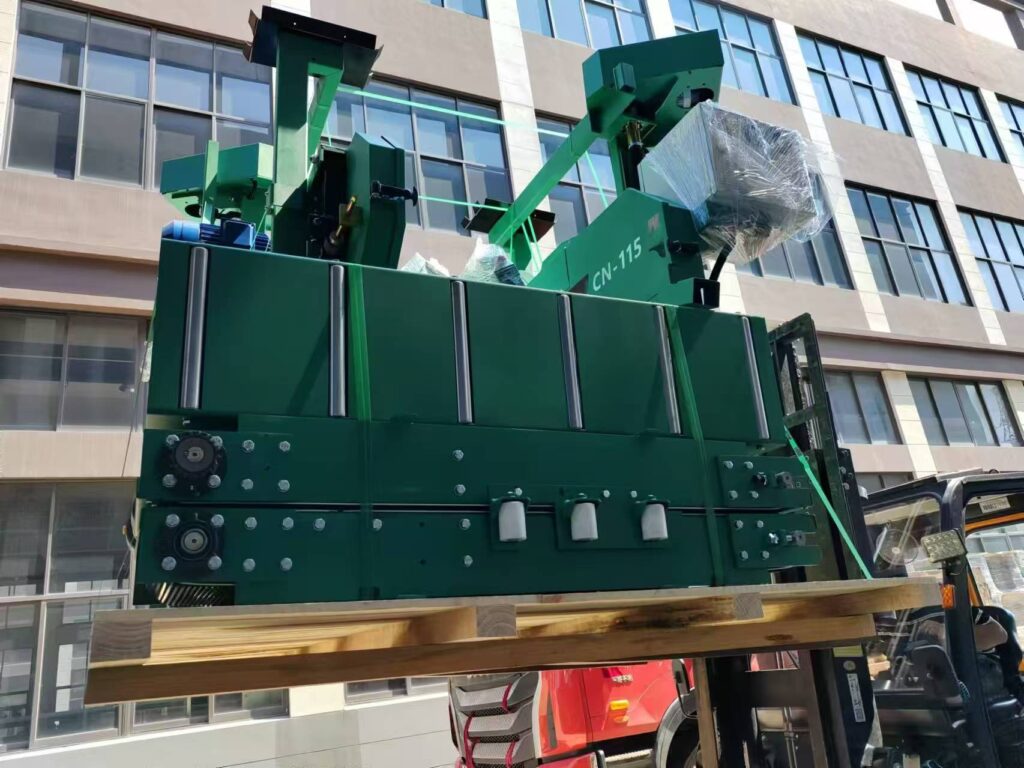

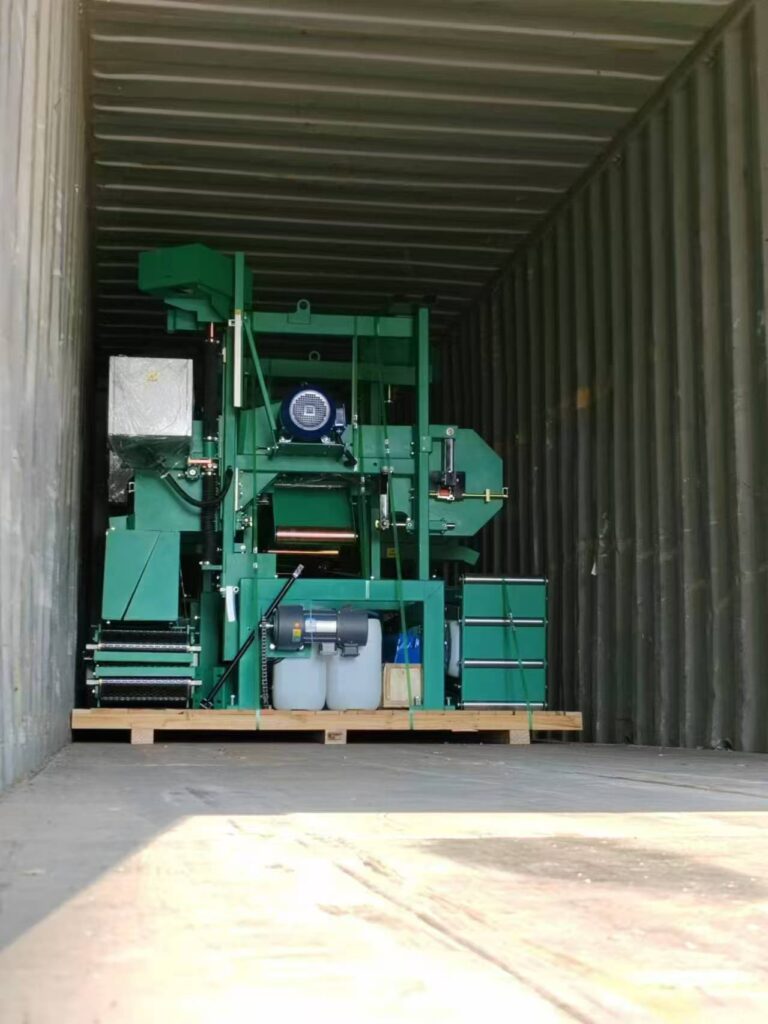

Usually we ship by sea, but railway and land transportation are also very convenient.

Nanyang Machinery has more than 2,000 users in China and around the world. In Southeast Asia (Indonesia, the Philippines, Malaysia, Myanmar, Vietnam and Laos), Africa (Gabon, Benin, Congo, Togo, Nigeria, Angola, Ghana), South America (Chile, Uruguay, Brazil, Suriname, Guyana), Ukraine, Romania, Kazakhstan) and Japan, North Korea and more than 30 other countries, it enjoys a very good reputation among users, furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other dry wood products companies.
