Power

5.5 kw

Log Dia.

1500 mm

Max. Cut

7000 mm

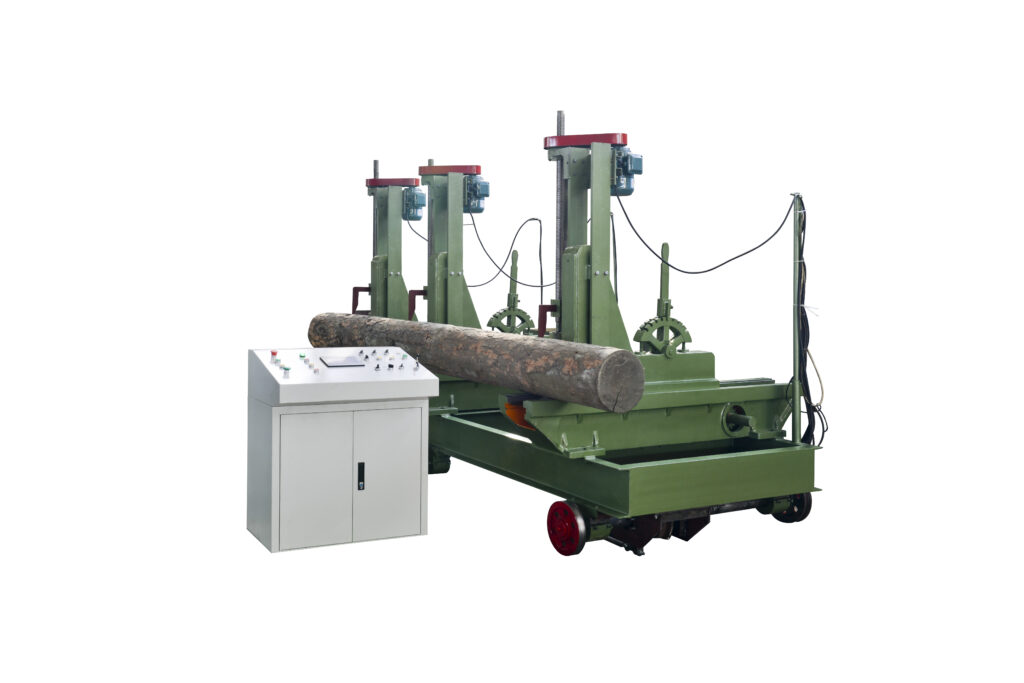

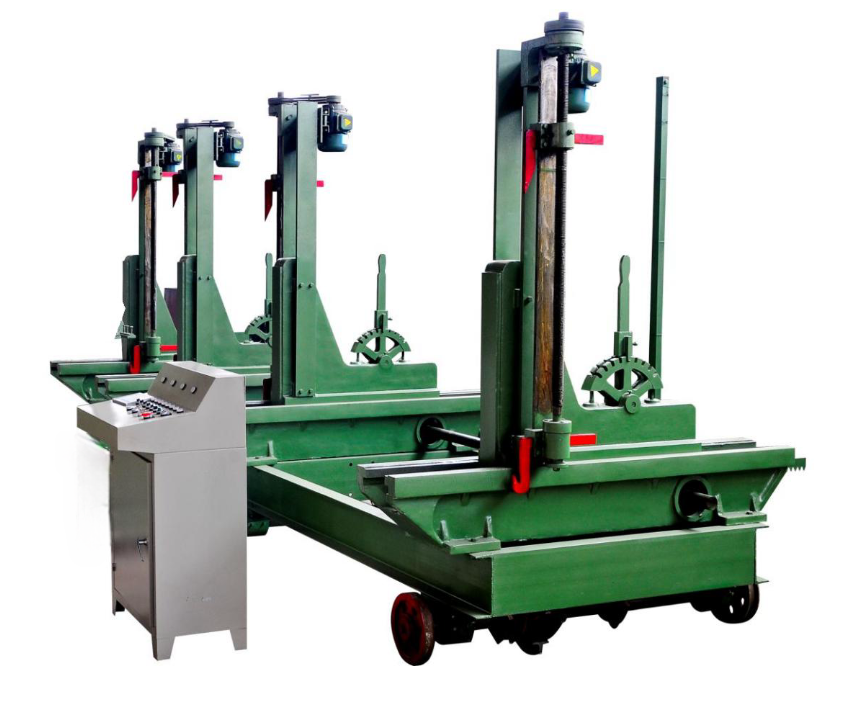

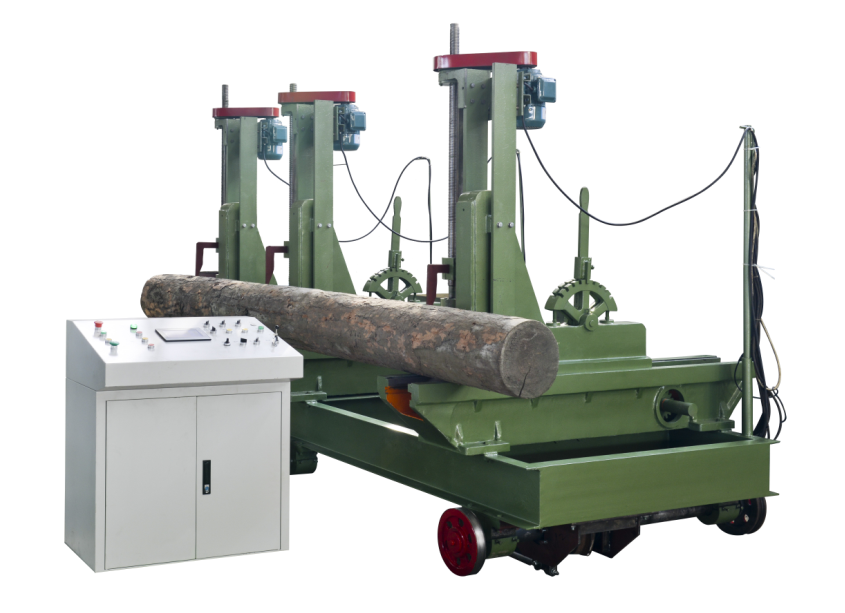

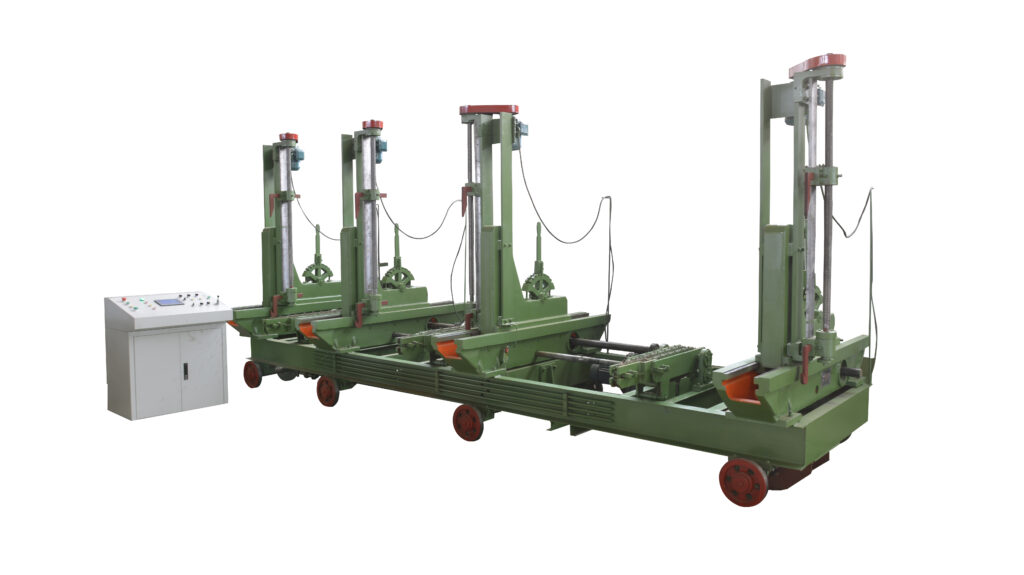

60-Inch Automatic Hydraulic Log Carriage | MJ329/4DE-G(F)

Price:

  • Automatic rotating device ; Automatic Forward & backward; Automatic hook;

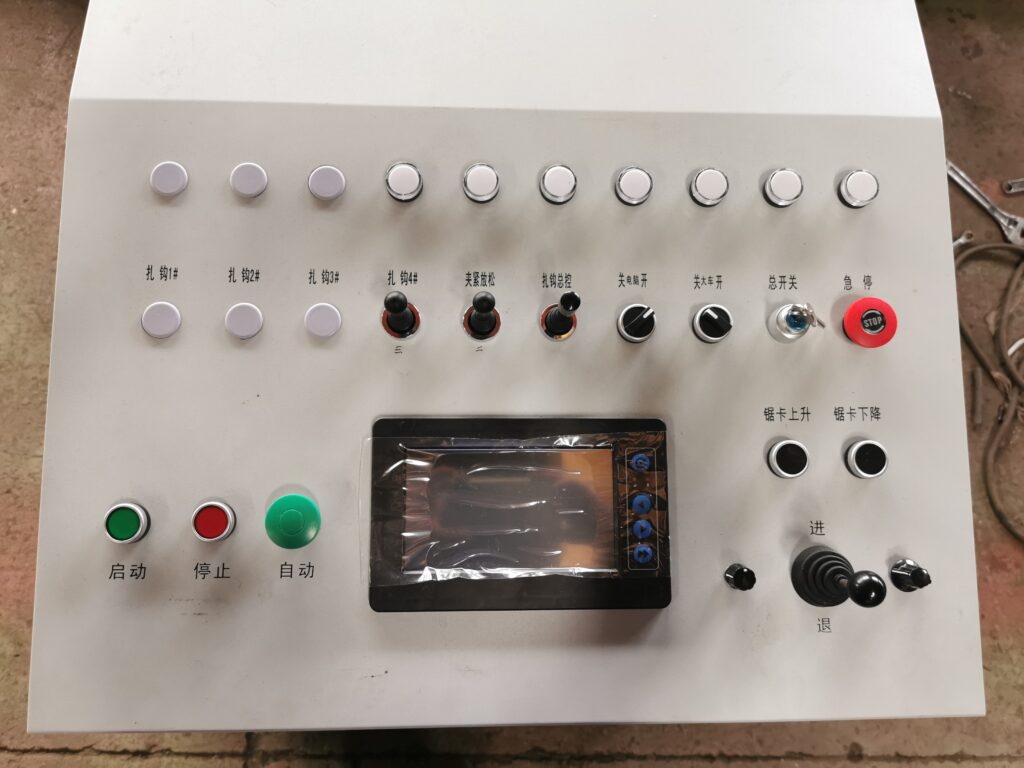

  • PLC control system; Touch screen display
  • Wire rope traction; Frequency control
  • Automatic concede

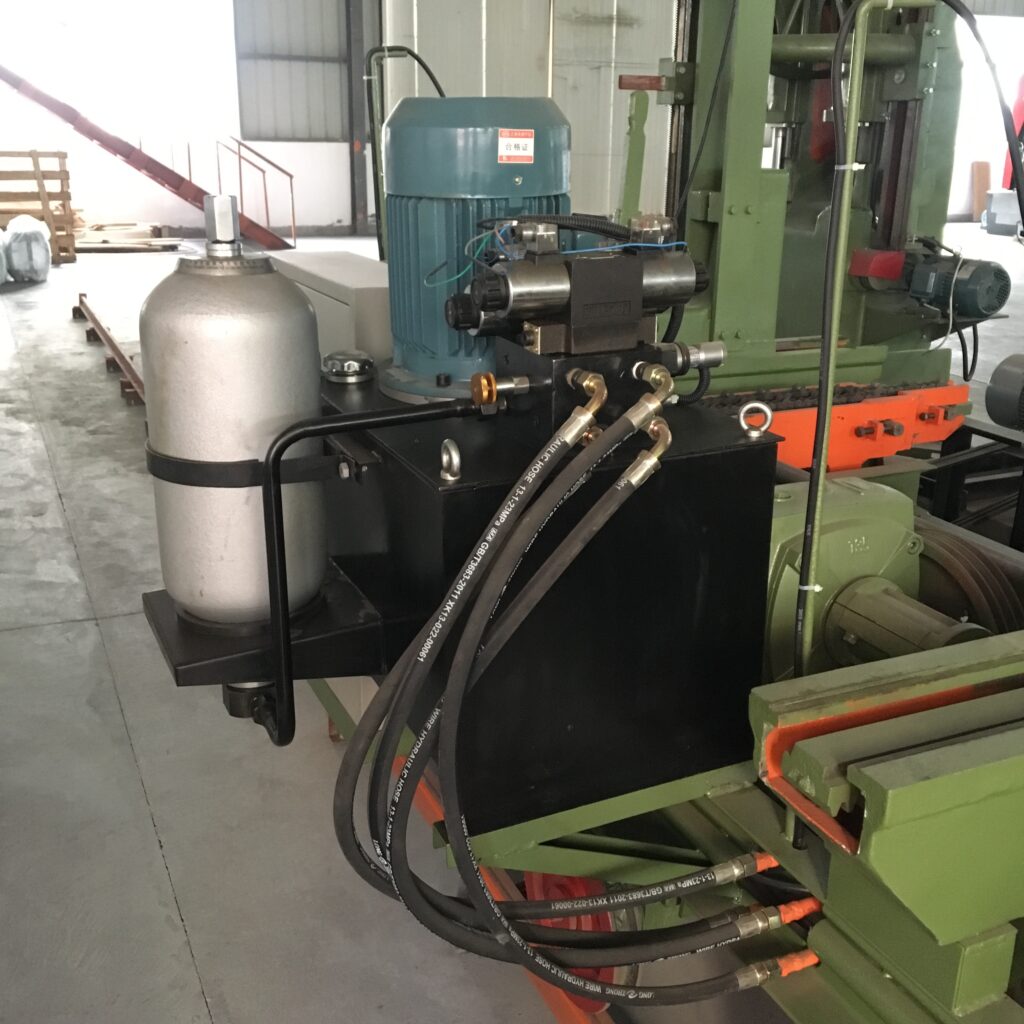

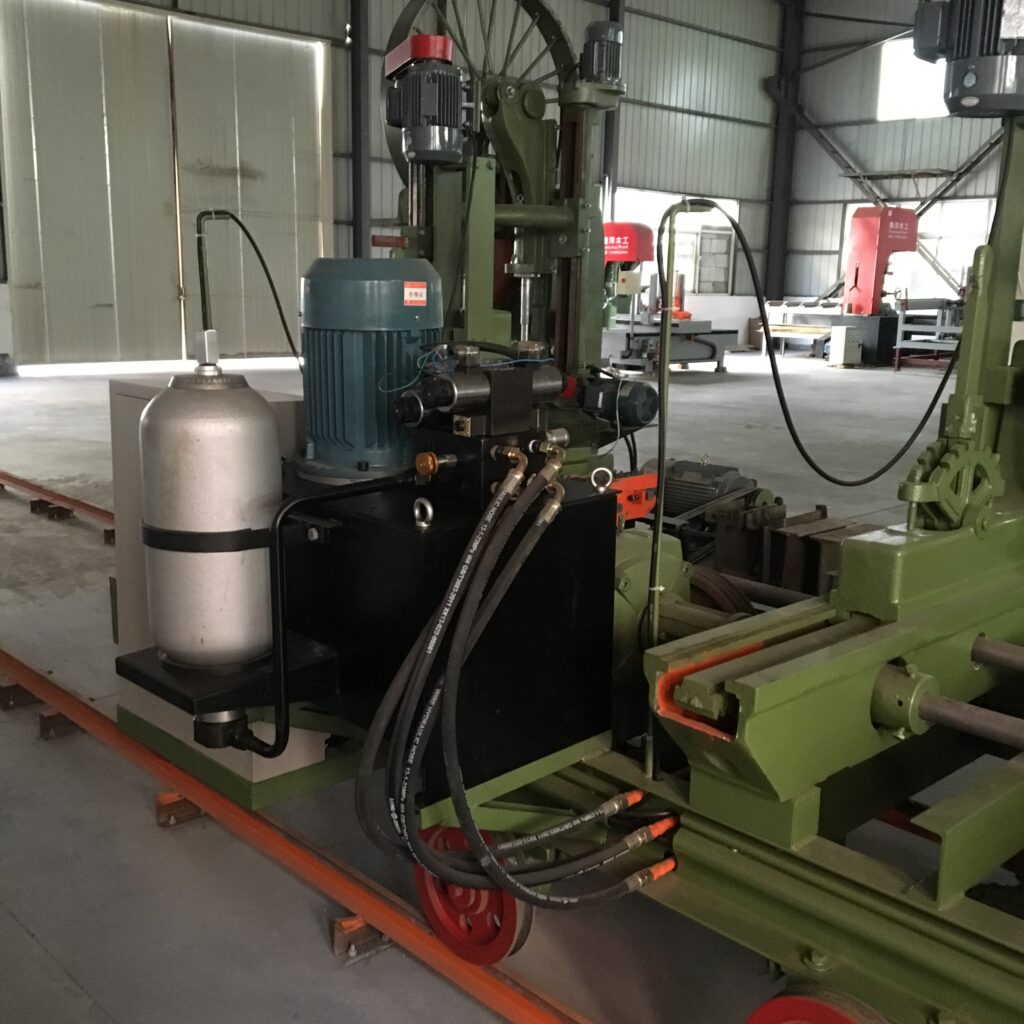

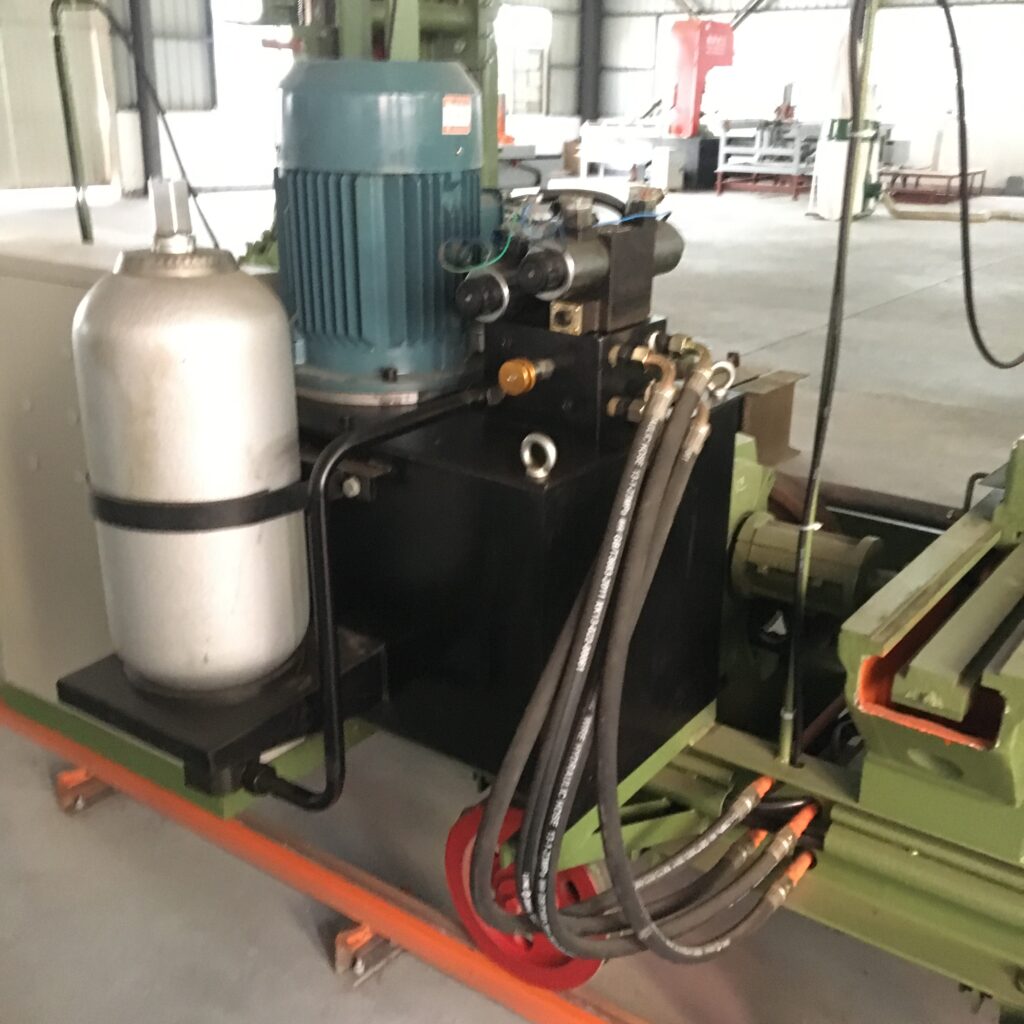

  • Automatic feeding device( Hydraulic control)

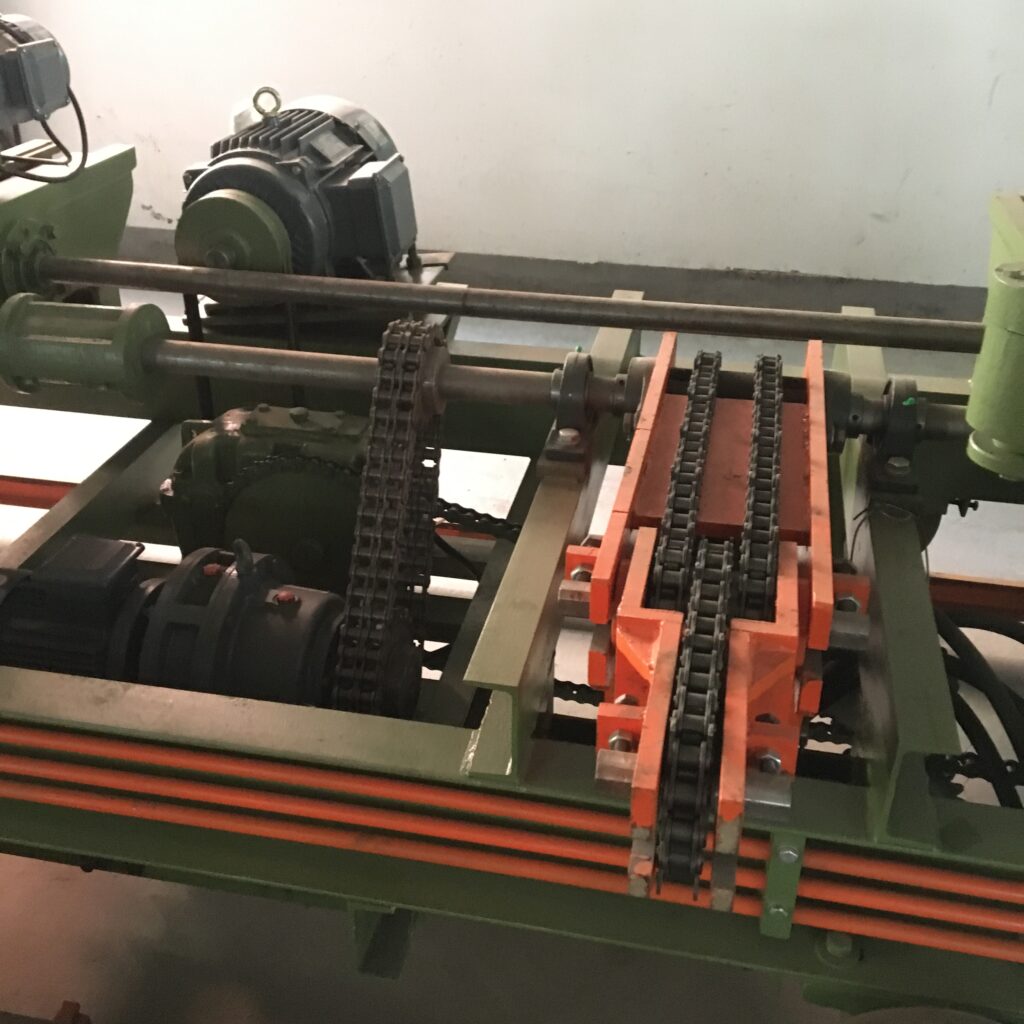

  • Automatic conveyor line ( Electric control)
Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

NameMJ329/4DE-GMJ329/4DE-GF
Max. sawing diameter1500mm1500 mm
Max. sawing length7000mm7000 mm
Max. forward speed66m/min66m/min
Max. backward speed92m/min92m/min
Footage speed17mm/s17mm/s
Effective stroke of timber blocking pile1400mm1400mm
Quantity of timber blocking pile4 Nos.4 Nos.
Traction modeWire ropeWire rope
Power of hydraulic system in rolling/5.5KW
Working pressure of hydraulic system in feeding/7Mpa
Hydraulic oil label of hydraulic system/46#
Track length21000mm21000mm
Total power17.6KW24.2KW
External dimension (L×W×H )5800×2000×2600 mm5800×2600×2600mm
Weight8000kg9000kgs
