Power

4.4 kw

Log Dia.

1200 mm

Max. Cut

4000 mm

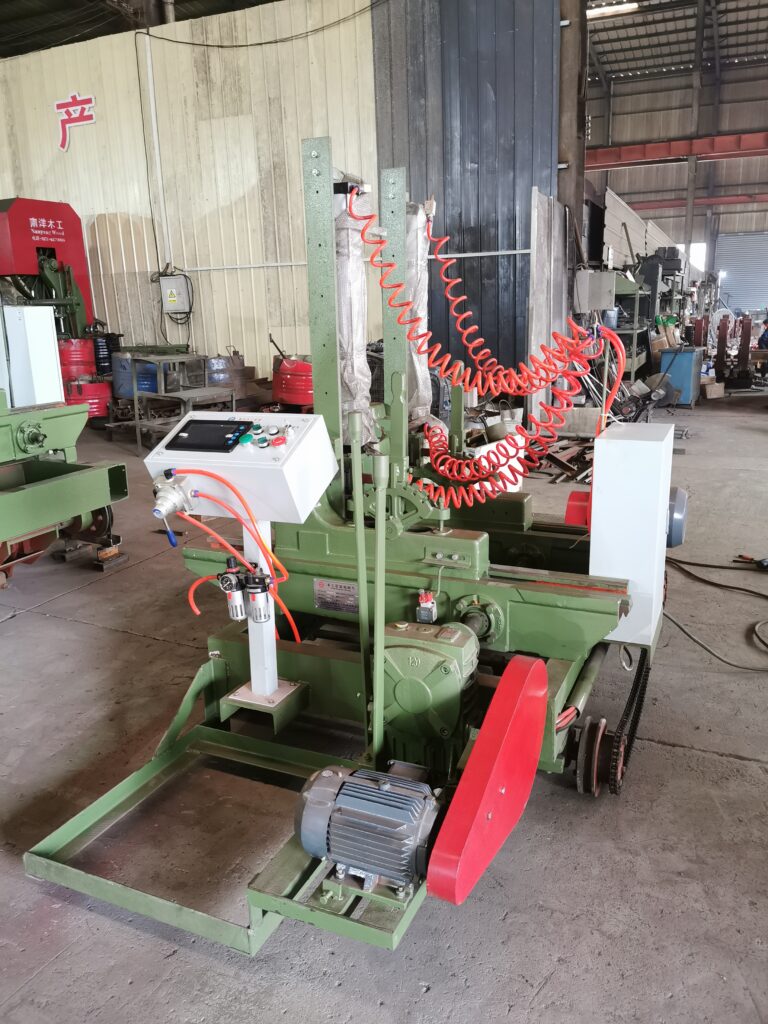

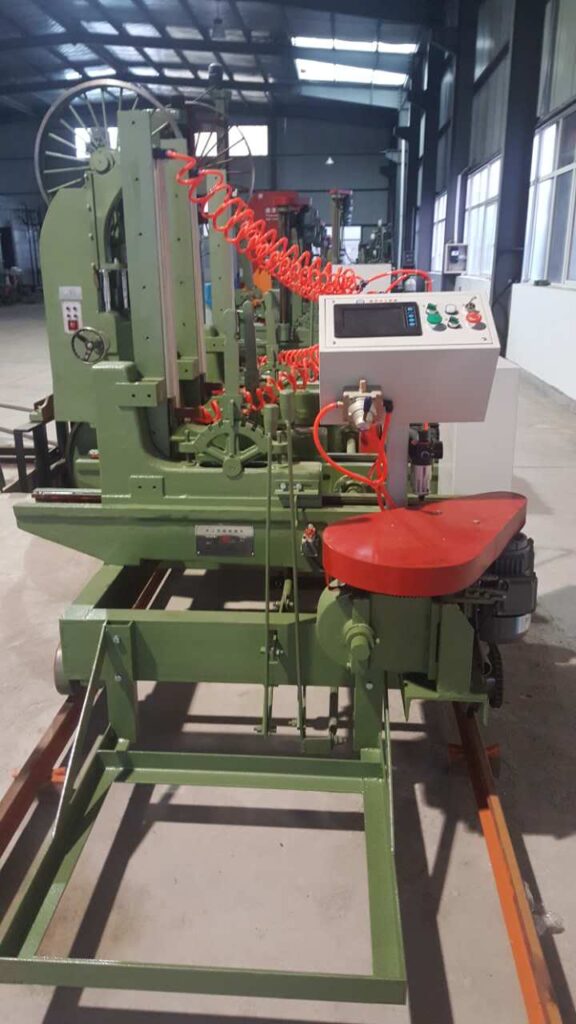

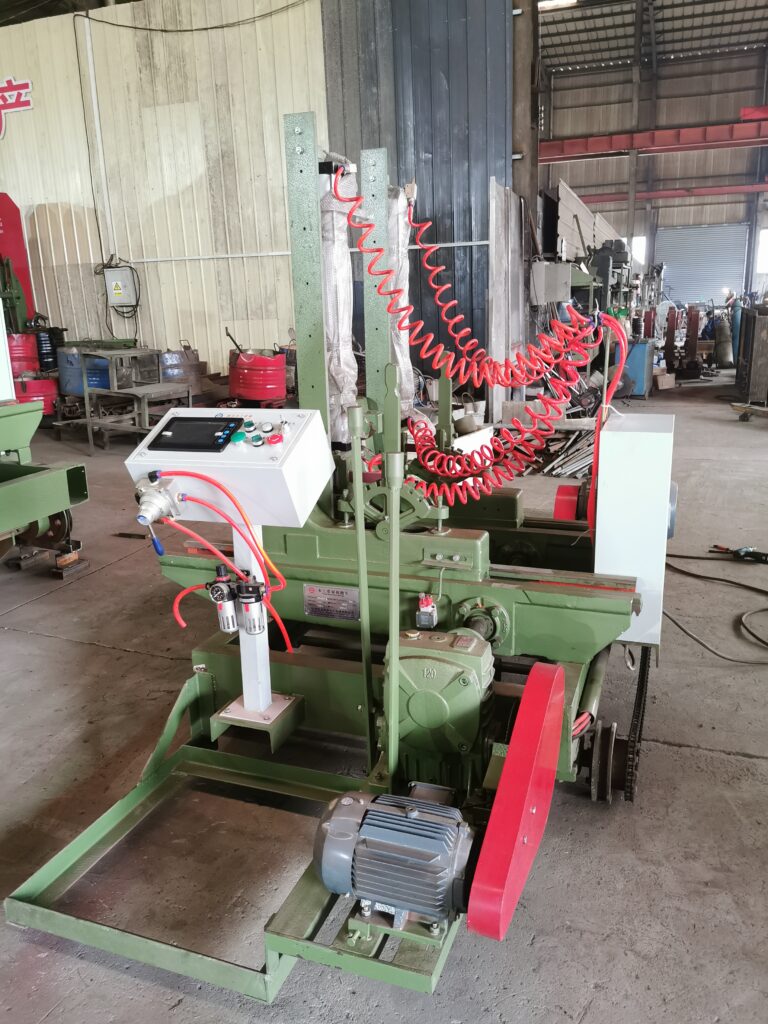

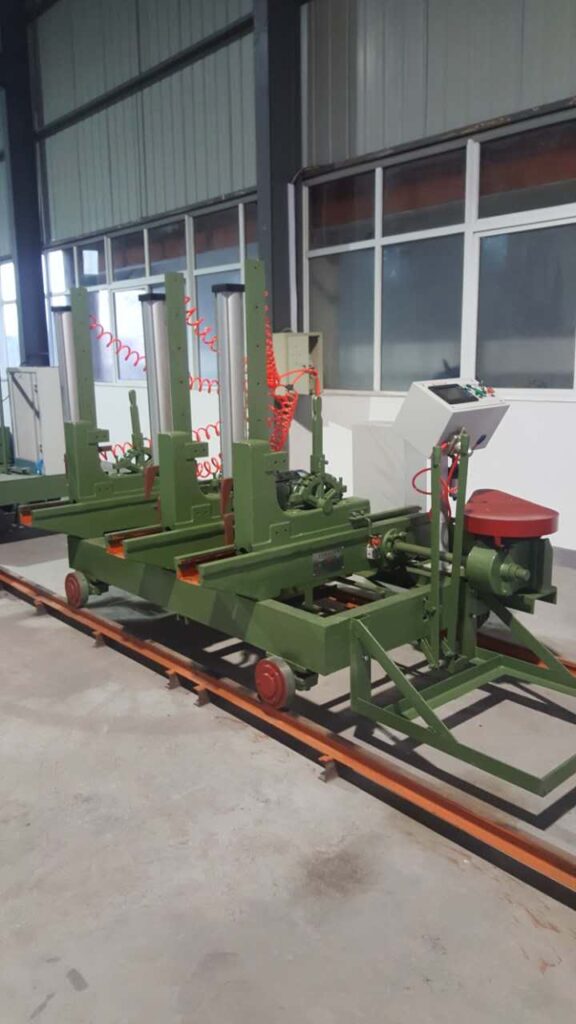

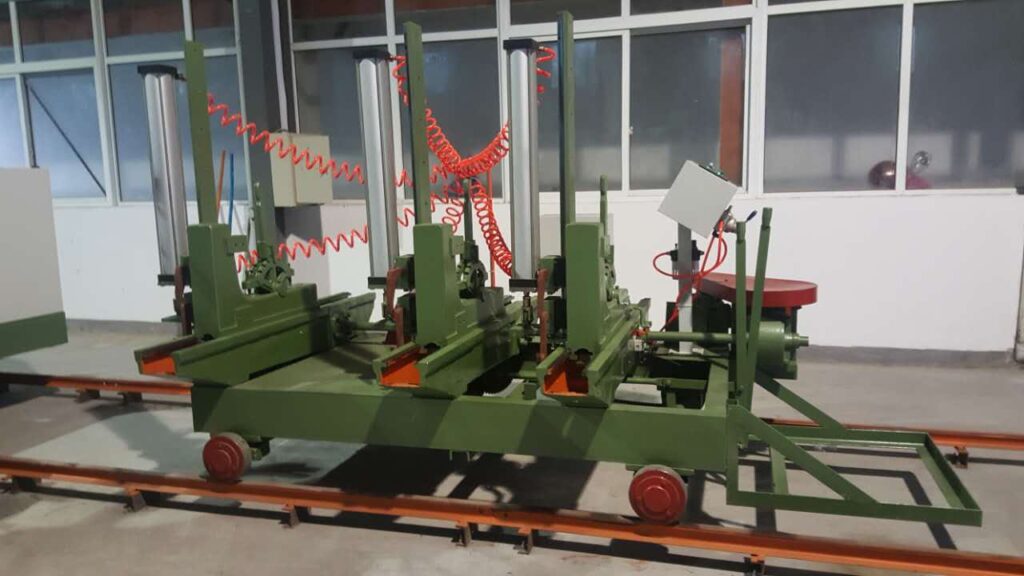

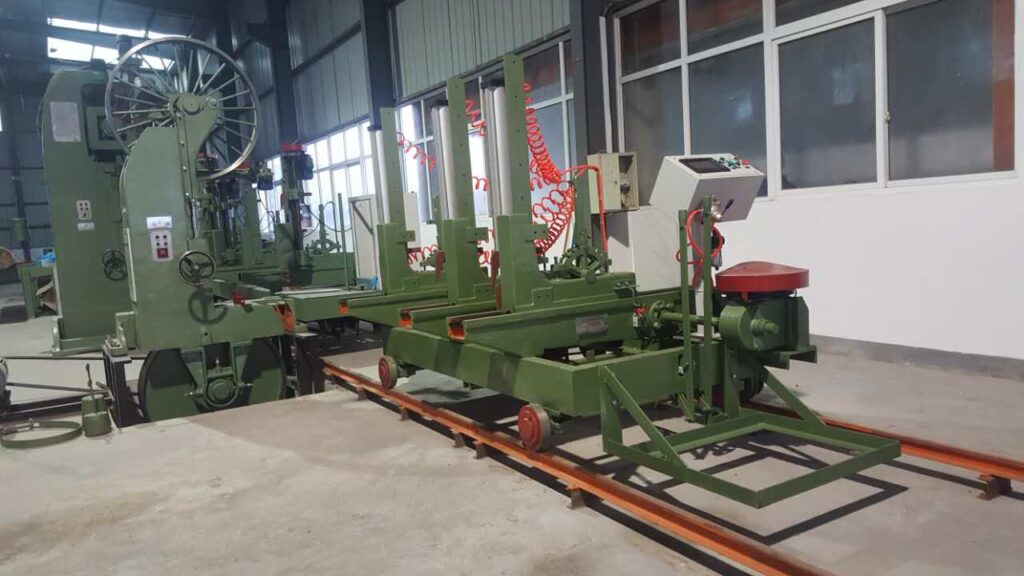

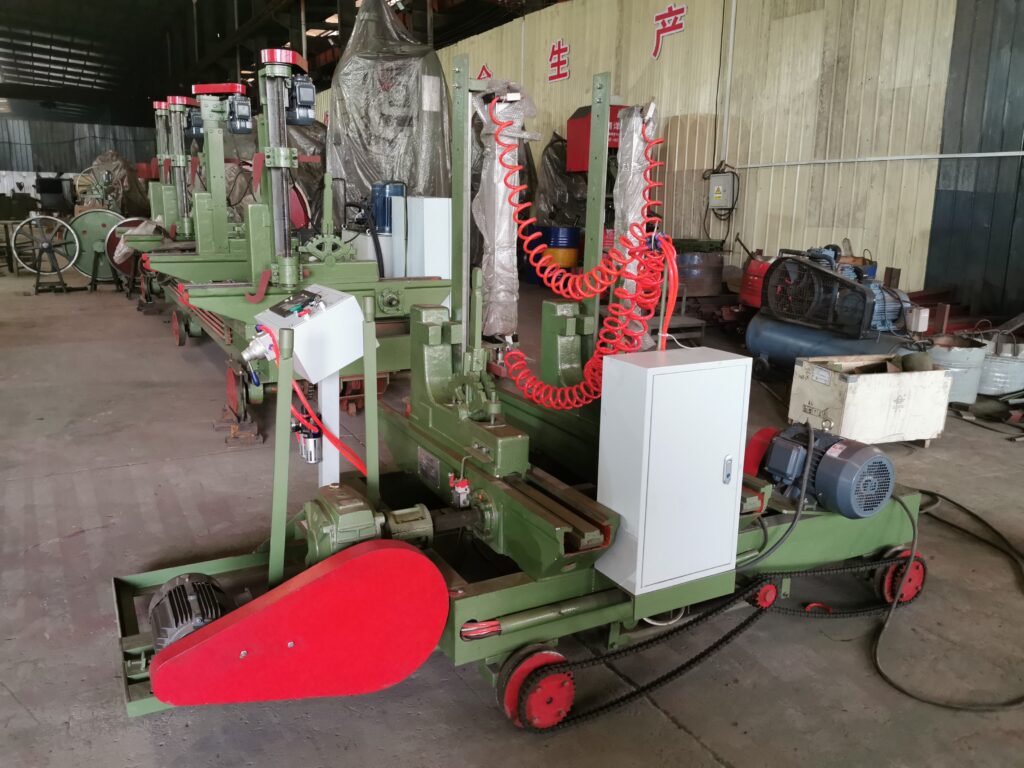

42-Inch Pneumatic Log Carriage | MJ329/2SD-Q

Price:

  • Automatic Forward & backward; Pneumatic hook

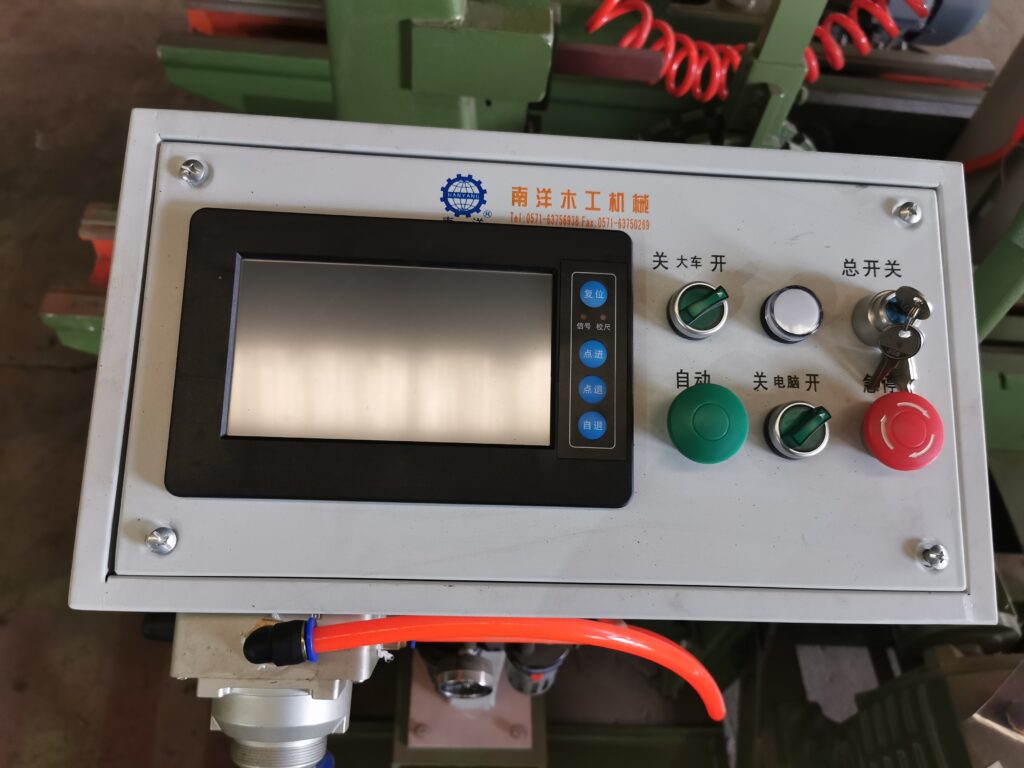

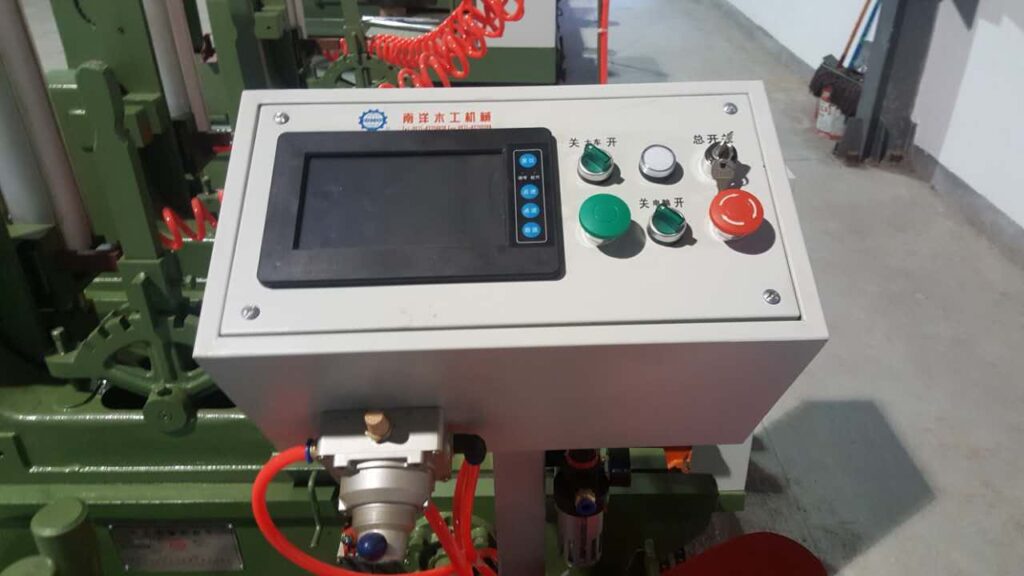

  • PLC control system; Touch screen display
  • Servo motor control
  • Automatic concede
Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

ItemMJ329/2SD2-QMJ329/2SD3-QMJ329/2SD4-Q
Maximum sawing diameter1200mm1200mm1200mm
Maximum sawing length2000mm3000mm4000mm
Max. Forward speed39m/min39m/min39m/min
Max. Backward speed82m/min82m/min82m/min
Footage speed37.8mm/s37.8mm/s37.8mm/s
Max. stroke of air cylinder800 mm800 mm800 mm
Inner Dia. of air cylinderφ100mmφ100mmφ100mm
Motor power4.4KW4.4KW4.4KW
Track length9000mm9000mm12000mm
Dimensions2800×1700×1850mm3300×1700×1850mm4600×1700×1850mm
Weight1800kgs2500kgs2800kgs
