Power

24.2 kw

Log Dia.

1200 mm

Max. Cut

6000 mm

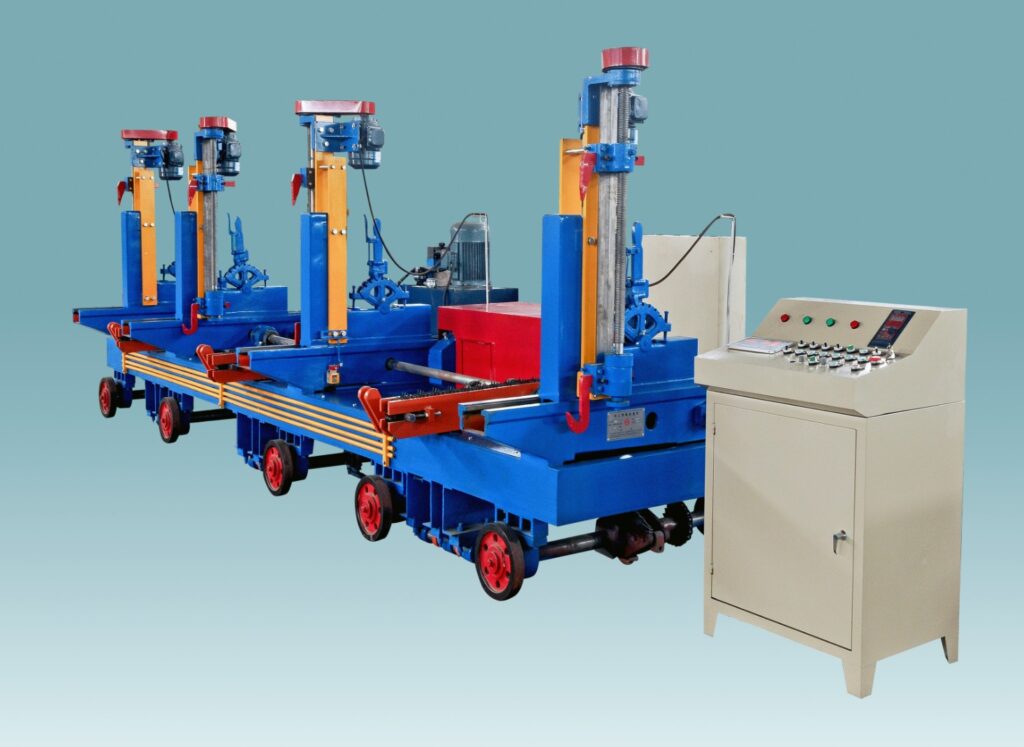

50-Inch Automatic Hydraulic Log Carriage | MJ329/3DE-L(F)

Price:

  • Automatic rotating device ; Automatic hook; Automatic Forward & backward

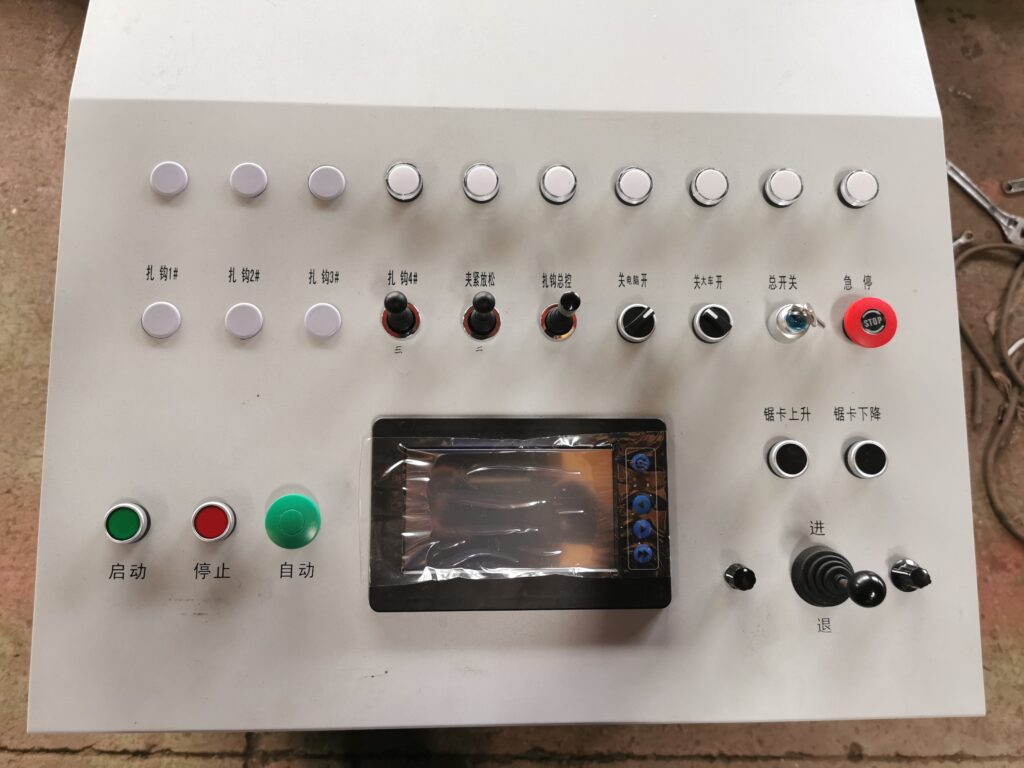

  • PLC control system; Touch screen display
  • Wire rope traction; Frequency changer control
  • Automatic concede
  • Automatic feeding device( Hydraulic control)  ※
  • Automatic conveyor line ( Electric control)
Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

ItemMJ329/3DE-LMJ329/3DE-LF
Max. sawing diameter1300mm1300mm
Max. sawing length6000mm6000mm
Max. Forward speed66m/min66m/ min
Max. Backward speed92m/min92m/min
Footage speed23mm/s23mm/s
Effective stroke of timber blocking pile1100mm1100mm
Quantity of timber blocking pile4Nos.4 Nos.
Traction modeChain transmissionChain transmission
Power of hydraulic system in rolling/5.5KW
Working pressure of hydraulic system in feeding/7Mpa
Hydraulic oil label of hydraulic system/46#
Track length18000mm18000 mm
Total power14.1kw24.2KW
Dimensions (L´W´H)4800×1600×1900 mm5100×2200×1900 mm
Weight5500kg6000kg

Related Product

FAQ

Your woodworking machinery Success Starts with Nanyang

At Nanyang, we strive to provide superior services and solutions that surpass your expectations. Let us find the ideal woodworking machinery solution for your project.

We will respond to you within 24 hours after receiving your inquiry.

We are one of the factories with production, sales, after-sales. Real factory price and service.

Our main products are: wood band saws and carriages; wood drying equipment. Other products are: saw blade sharpening machines; saw blade rolling machines, saw blade welding machines, etc.

Woodworking band saws and sports cars involve application areas: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises. The application of wood drying kilns involves: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises.

Fully customizable, we have R&D team.

Annual output value is 50 million yuan.

The company currently has 100 employees, including more than 20 professional and technical personnel.

We will conduct corresponding tests after each process is completed. For the final product, we will do 100% comprehensive inspection according to customer requirements and industry standards.

When quoting, we will confirm the transaction method with you, FOB, CIF, CNF or other methods. Generally, customers pay 30% advance payment in advance, and the balance is paid before the factory ships. We mostly pay by T/T, of course, L/C is acceptable.

Usually we ship by sea, but railway and land transportation are also very convenient.

Nanyang Machinery has more than 2,000 users in China and around the world. In Southeast Asia (Indonesia, the Philippines, Malaysia, Myanmar, Vietnam and Laos), Africa (Gabon, Benin, Congo, Togo, Nigeria, Angola, Ghana), South America (Chile, Uruguay, Brazil, Suriname, Guyana), Ukraine, Romania, Kazakhstan) and Japan, North Korea and more than 30 other countries, it enjoys a very good reputation among users, furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other dry wood products companies.
