Power

24.2 kw

Log Dia.

1200 mm

Max. Cut

6000 mm

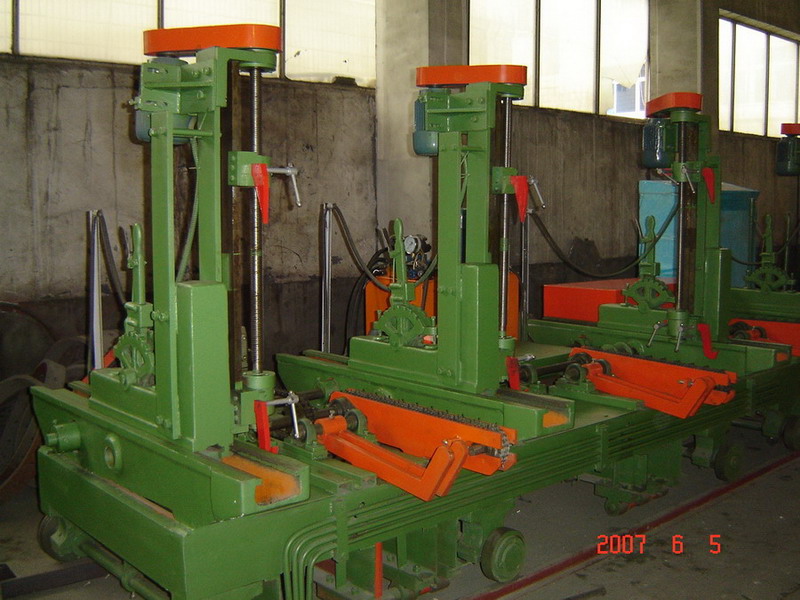

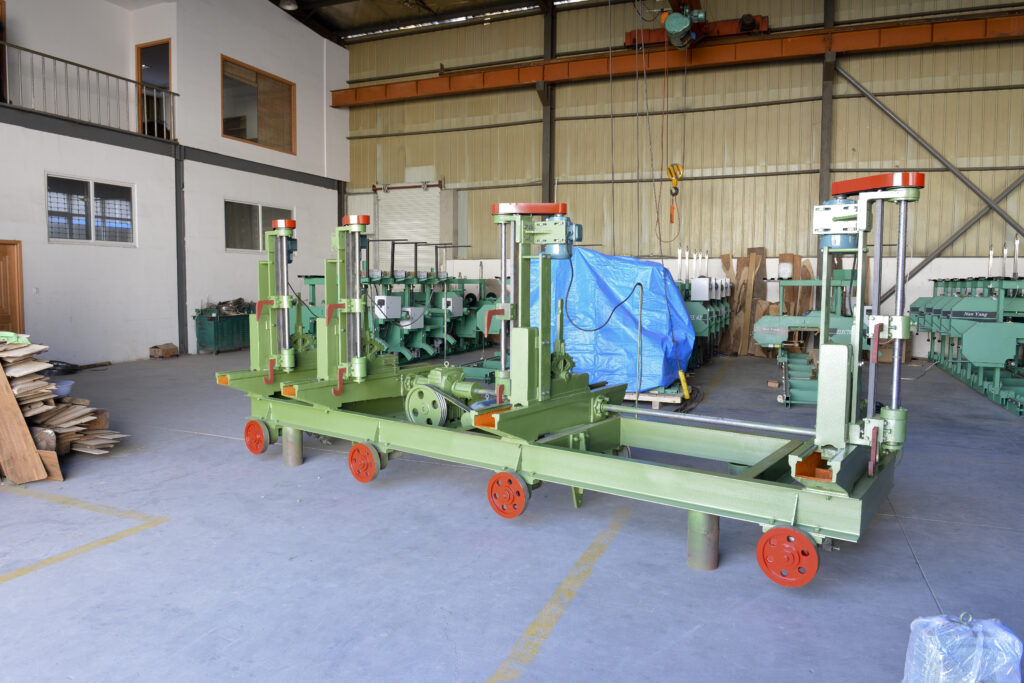

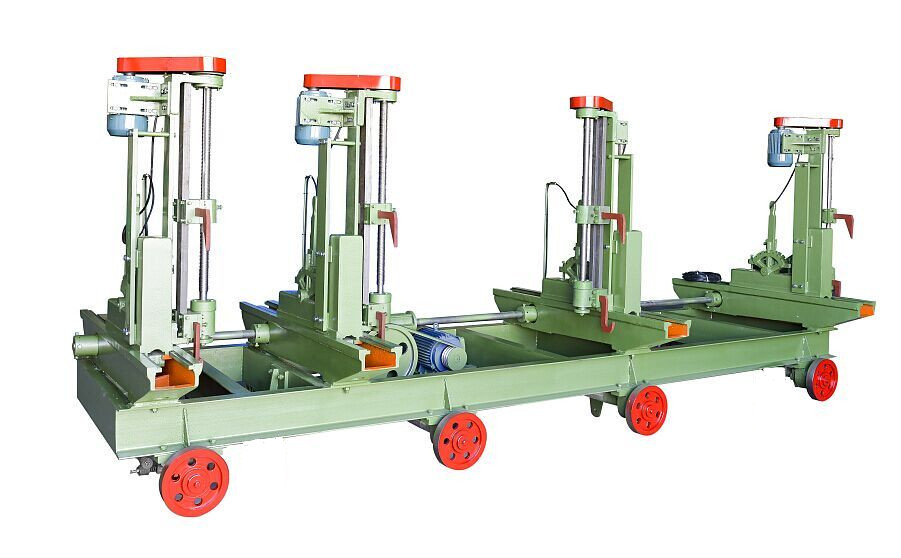

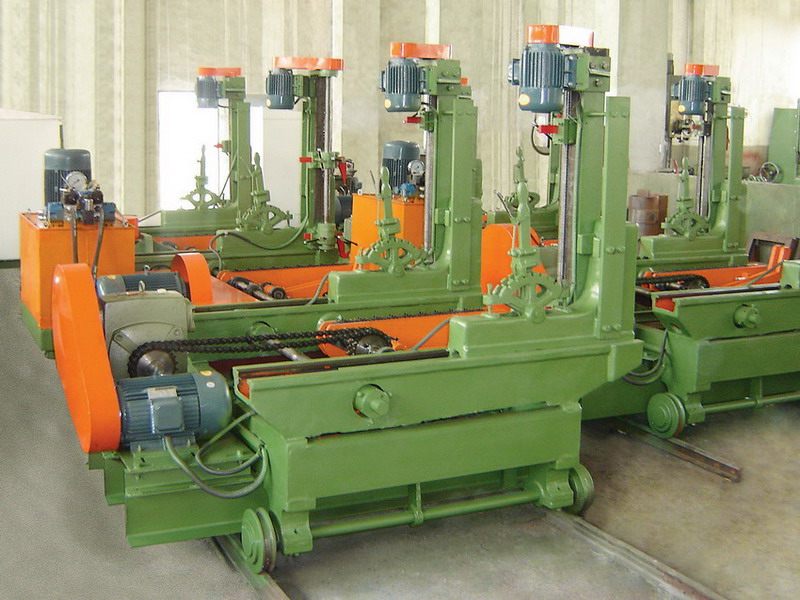

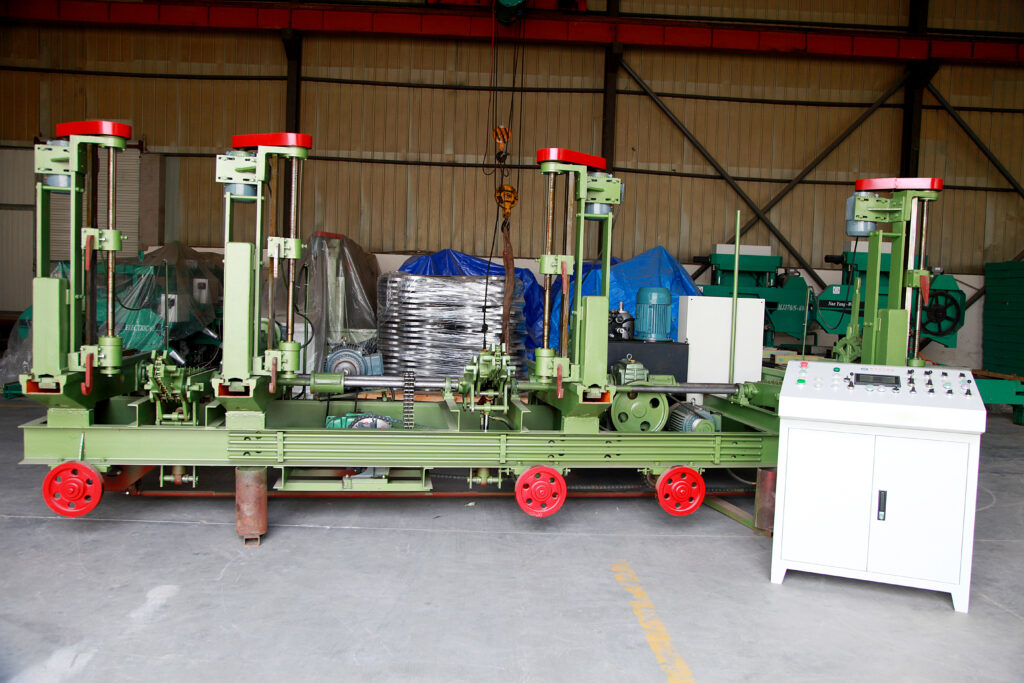

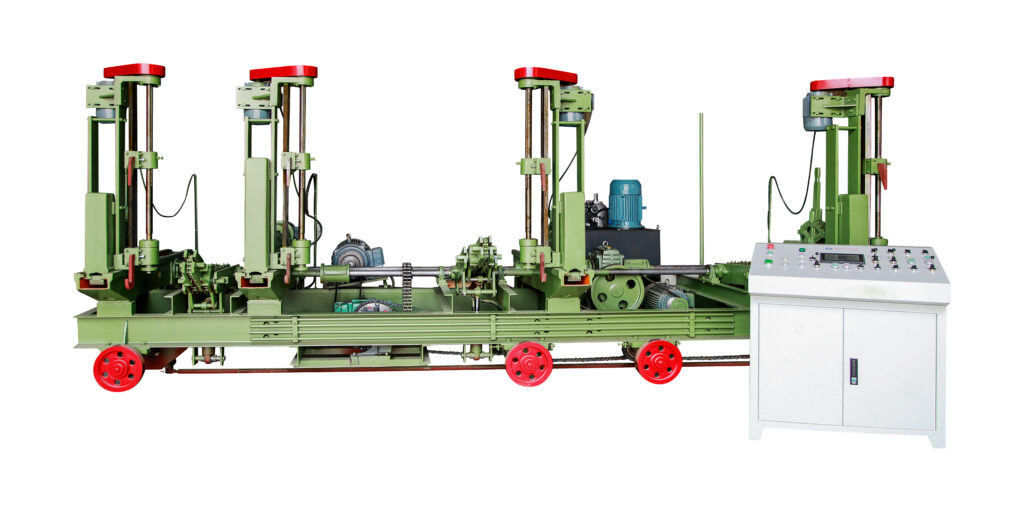

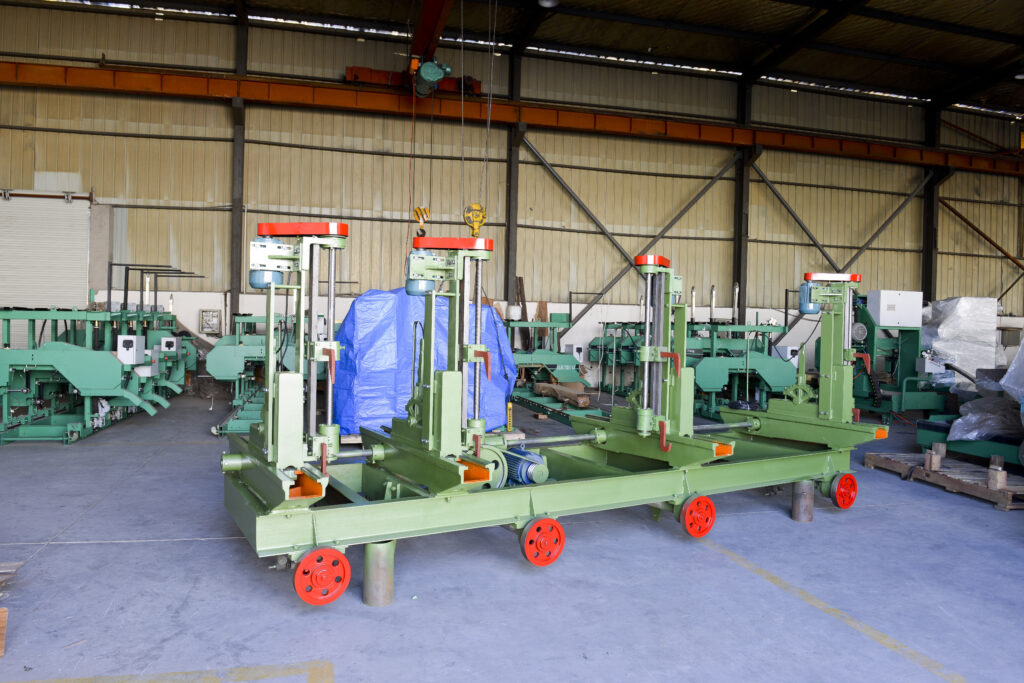

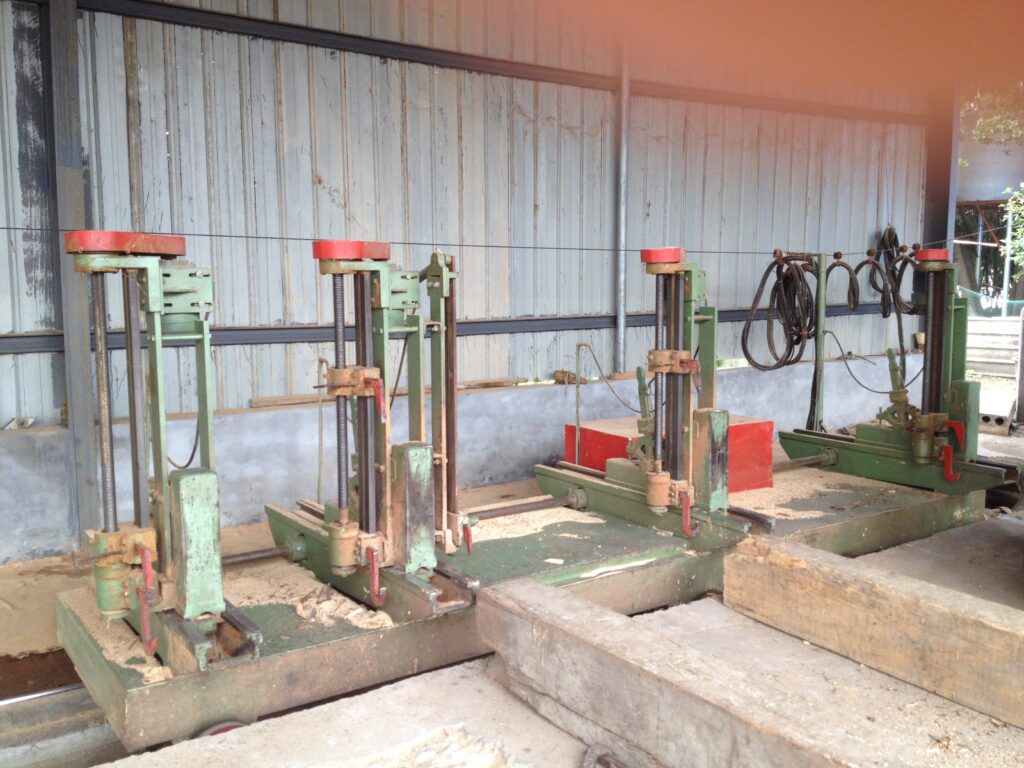

42-Inch Automatic Hydraulic Log Carriage | MJ329/2DE-L(F)

Price:

  • Automatic Forward & backward; Electric hook

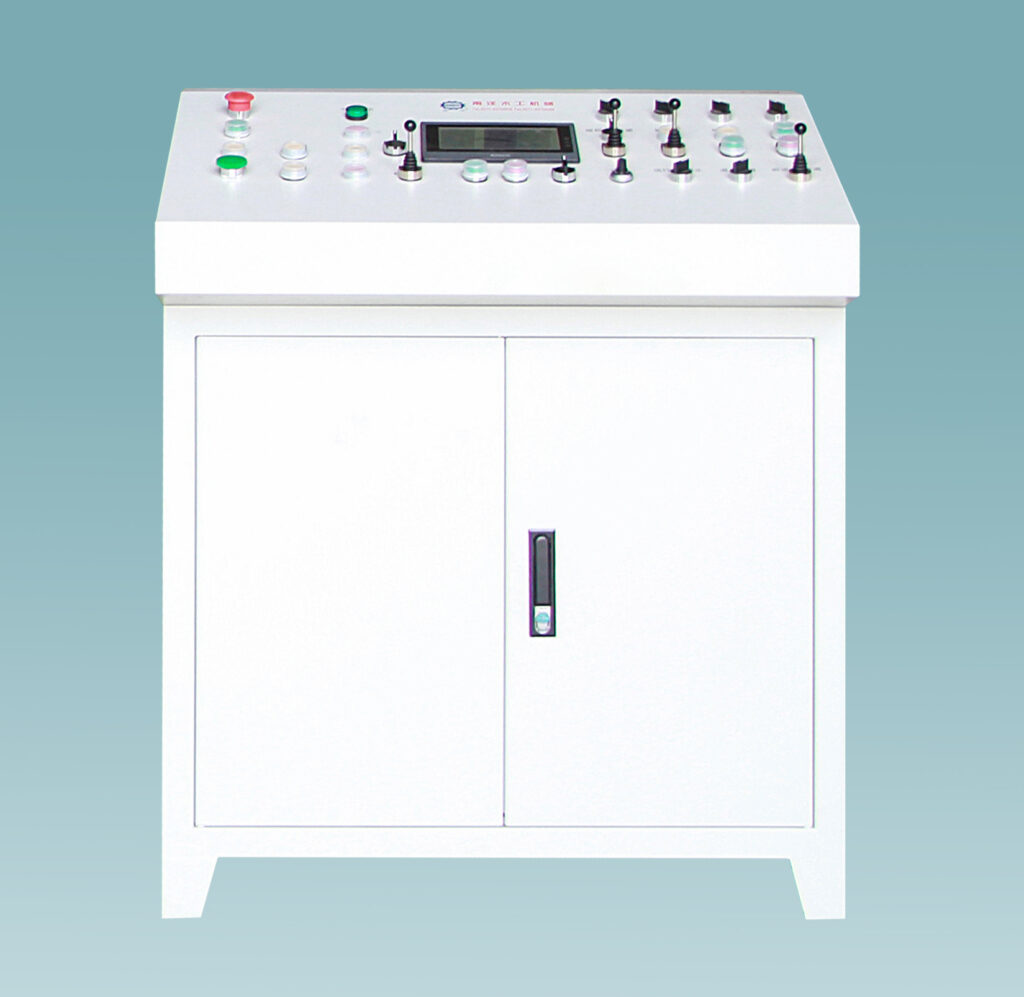

  • PLC control system; Touch screen display
  • Chain drive; Frequency changer control
  • Automatic rotating device ( Hydraulic control)
  • Automatic concede
Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

ItemMJ329/2DE-LMJ329/2DE-LF
Max. sawing diameter1200mm1200mm
Max. sawing length6000mm6000mm
Max. Forward speed66m/min66m/min
Max. Backward speed92m/min92m/min
Footage speed23mm/s23mm/s
Effective stroke of timber blocking pile1100 mm1100mm
Quantity of timber blocking pile4 Nos.4 Nos.
Traction mode Chain Transmission Chain Transmission
Power of hydraulic system in rolling/5.5 Kw
Working pressure of hydraulic system in feeding /7Mpa
Track length18000mm18000mm
Total motor power17.6kw24.2Kw
Dimensions4750x1600x1800mm5100×2200×1900mm
Weight4500kgs5500kg

Related Product

FAQ

Your woodworking machinery Success Starts with Nanyang

At Nanyang, we strive to provide superior services and solutions that surpass your expectations. Let us find the ideal woodworking machinery solution for your project.

We will respond to you within 24 hours after receiving your inquiry.

We are one of the factories with production, sales, after-sales. Real factory price and service.

Our main products are: wood band saws and carriages; wood drying equipment. Other products are: saw blade sharpening machines; saw blade rolling machines, saw blade welding machines, etc.

Woodworking band saws and sports cars involve application areas: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises. The application of wood drying kilns involves: furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other wood products enterprises.

Fully customizable, we have R&D team.

Annual output value is 50 million yuan.

The company currently has 100 employees, including more than 20 professional and technical personnel.

We will conduct corresponding tests after each process is completed. For the final product, we will do 100% comprehensive inspection according to customer requirements and industry standards.

When quoting, we will confirm the transaction method with you, FOB, CIF, CNF or other methods. Generally, customers pay 30% advance payment in advance, and the balance is paid before the factory ships. We mostly pay by T/T, of course, L/C is acceptable.

Usually we ship by sea, but railway and land transportation are also very convenient.

Nanyang Machinery has more than 2,000 users in China and around the world. In Southeast Asia (Indonesia, the Philippines, Malaysia, Myanmar, Vietnam and Laos), Africa (Gabon, Benin, Congo, Togo, Nigeria, Angola, Ghana), South America (Chile, Uruguay, Brazil, Suriname, Guyana), Ukraine, Romania, Kazakhstan) and Japan, North Korea and more than 30 other countries, it enjoys a very good reputation among users, furniture, flooring, wood boards, building materials, handicrafts, wood, wood packaging and other dry wood products companies.
