Power

6-15 kw

Motor Quantity

2-5

Fan Type

φ800

MYHG-SR Wood Packaging Materials Drying Kiln | MYHG-SR

Price:

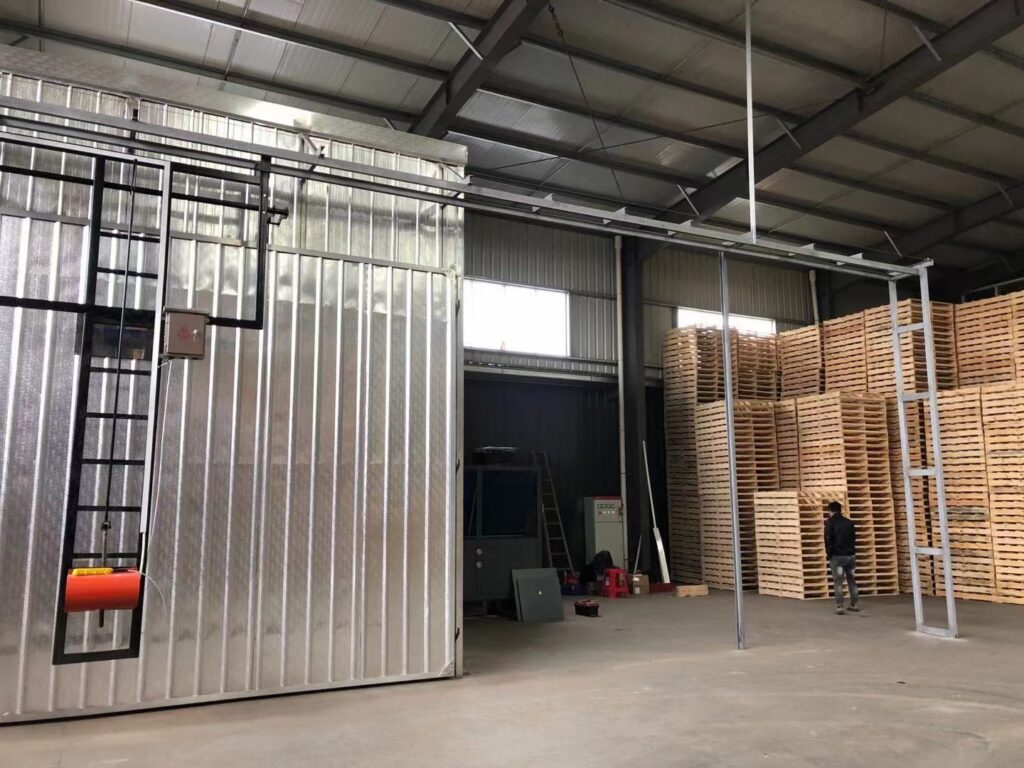

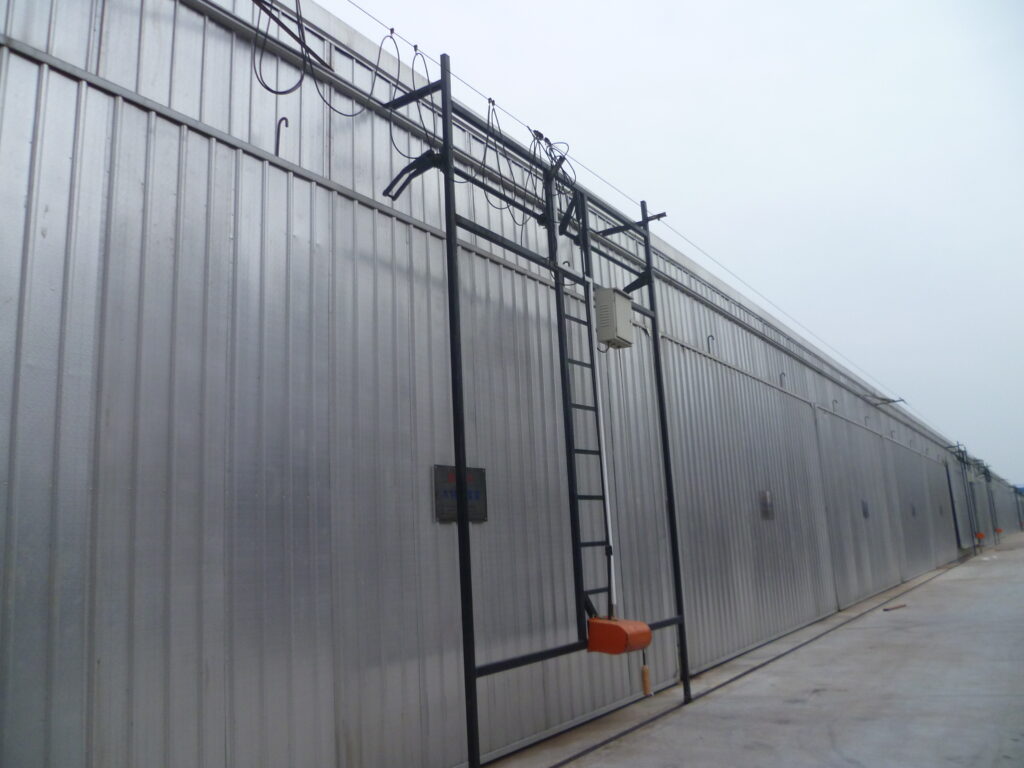

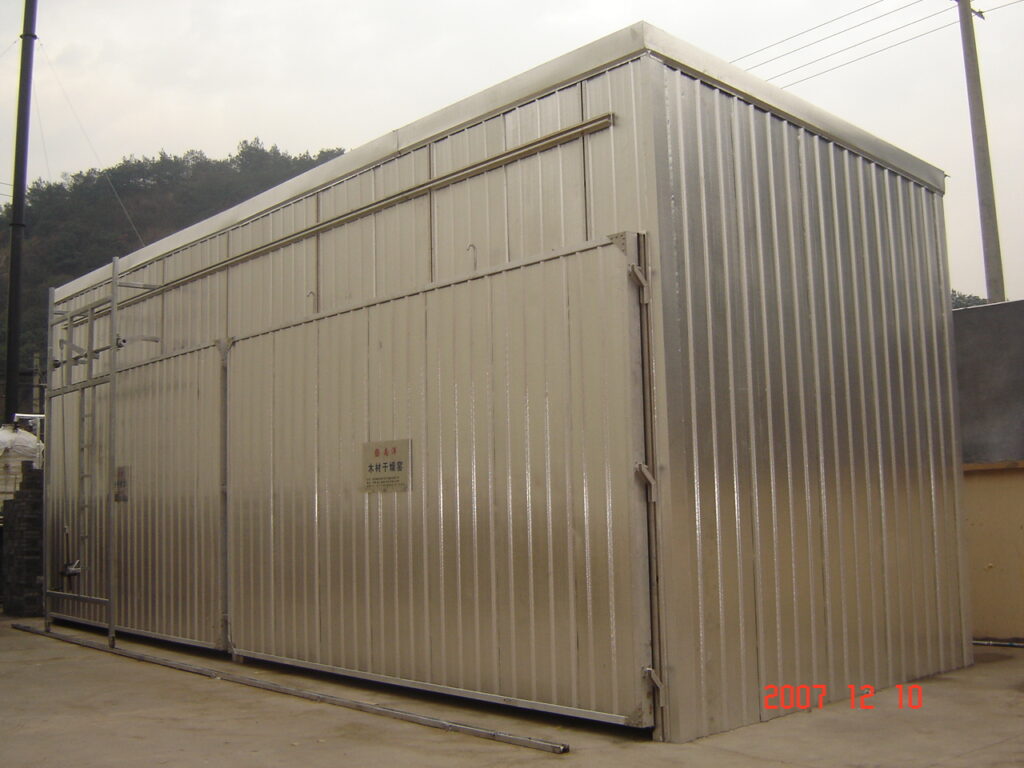

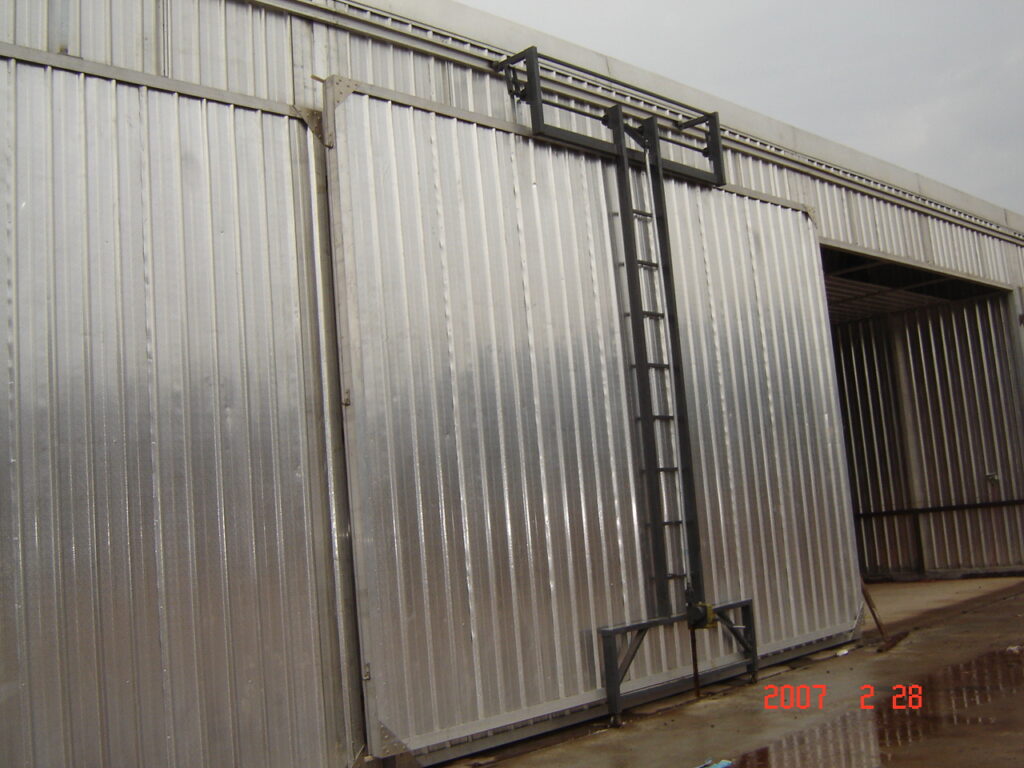

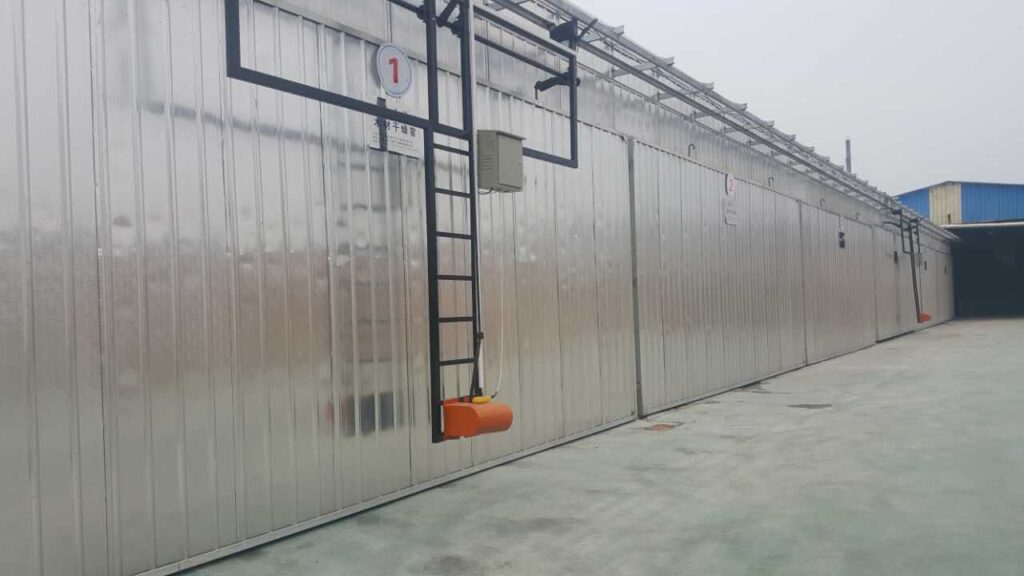

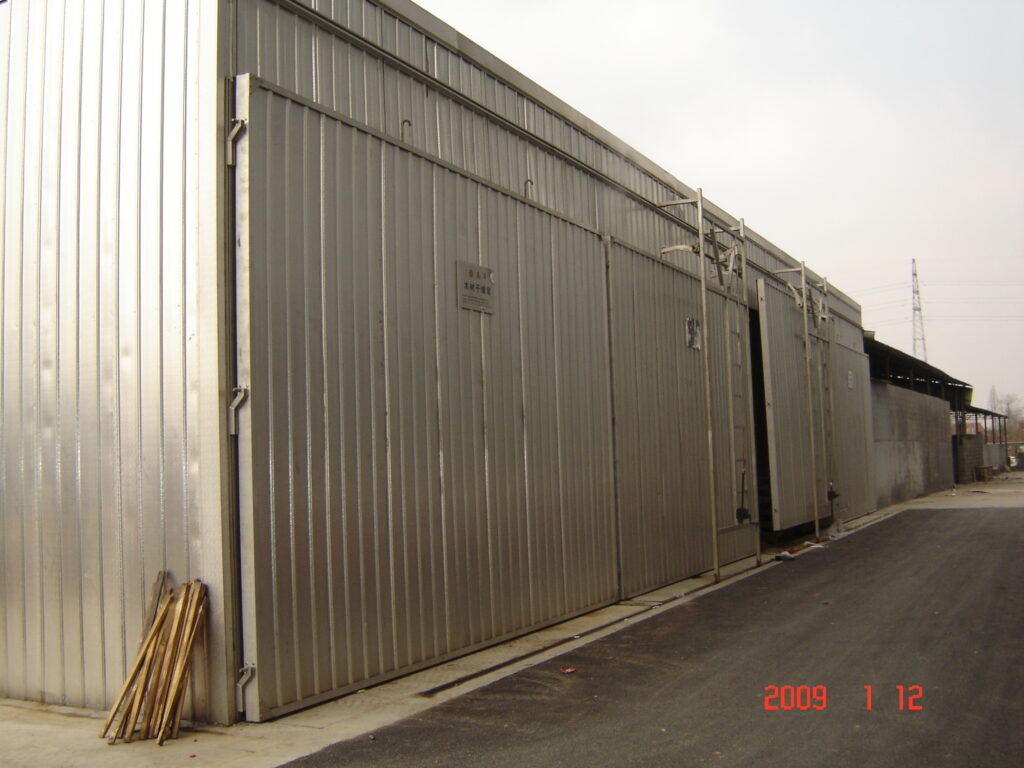

MYHG-SR wood and wood package heat treatment automatic control equipment uses the steam as the wood heat treatment heat source. It is a special equipment to do heat treatment on wood package and wood. The whole equipment consists of the heat treatment kiln, the heat supplying system, the air circulating system, the humidity adjustment and air discharge system, the automatic control system, the temperature monitor and control system and the inspection, printing & record system.

Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

This product is widely applicable for wood products processing enterprises who have the needs of heat treatment quarantine on wood package used for imported & exported goods.

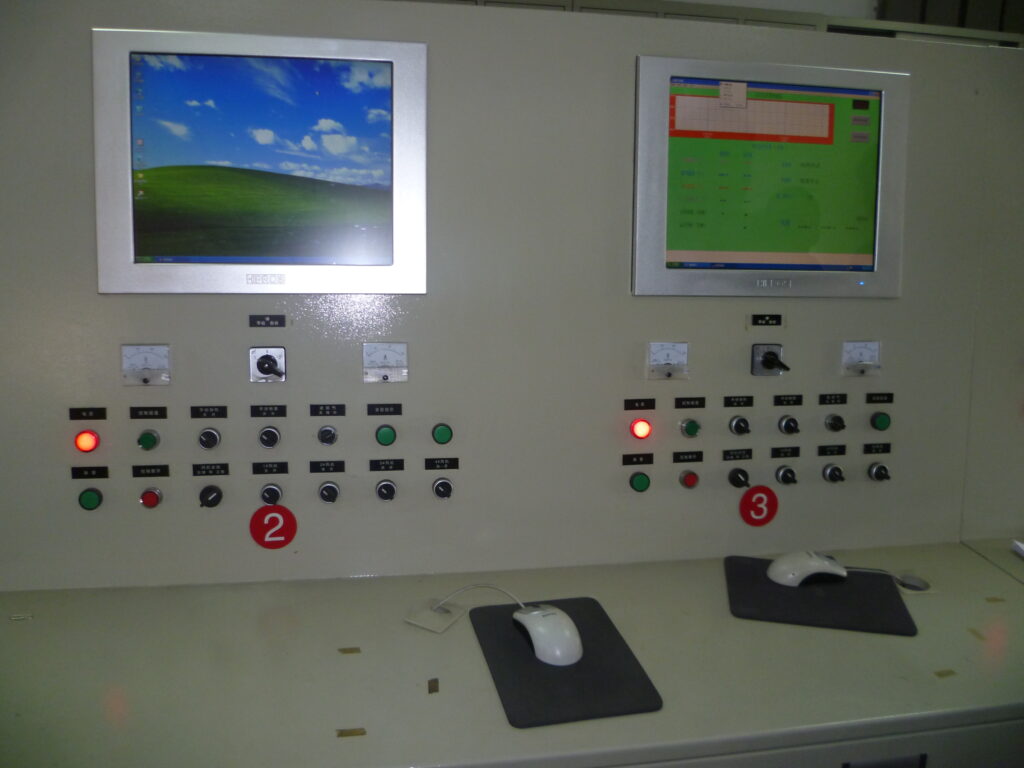

The heat treatment process of the whole equipment is monitored by the computers that check time, dry bulb and wet bulb temperature, wood core temperature, heating, air circulating, humidity adjustment and humidity discharge, temperature inspection and wood water content rate inspection. The printing & record system of temperature, humidity and water content rate is controlled automatically.

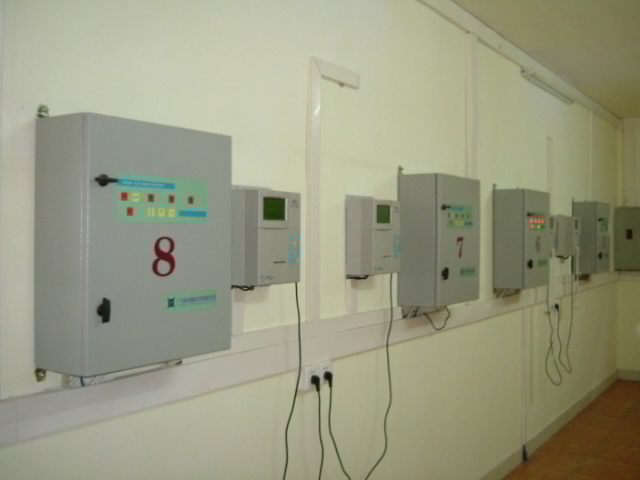

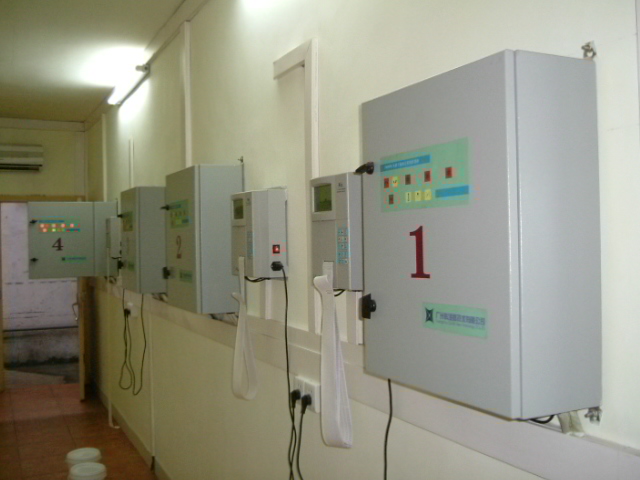

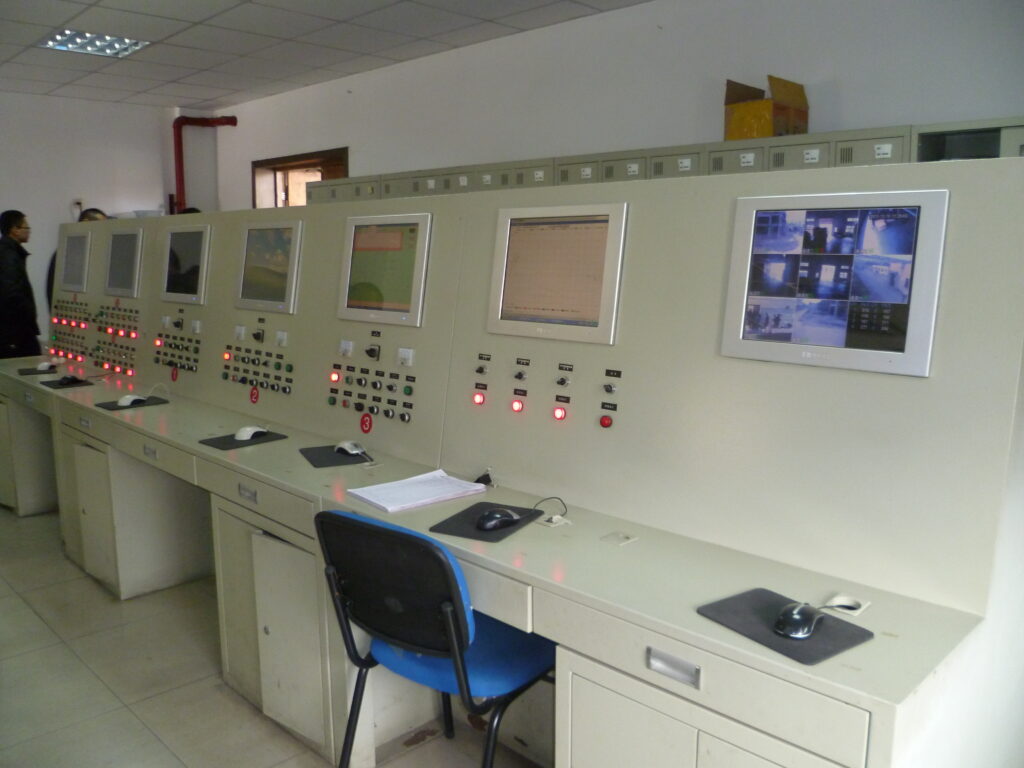

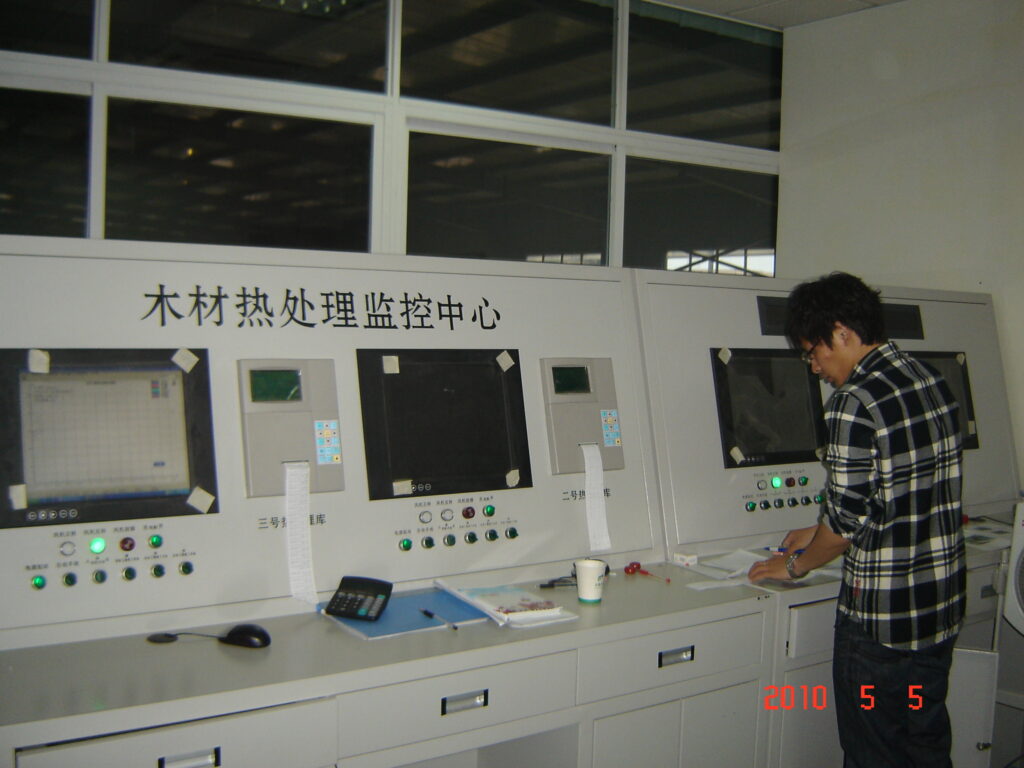

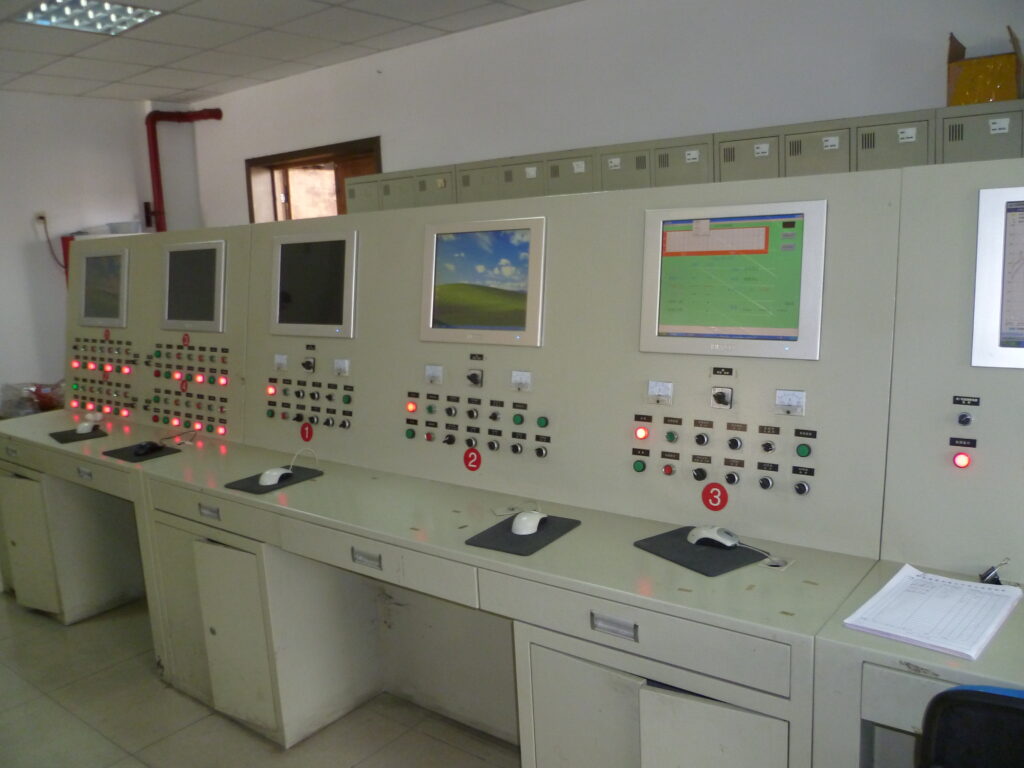

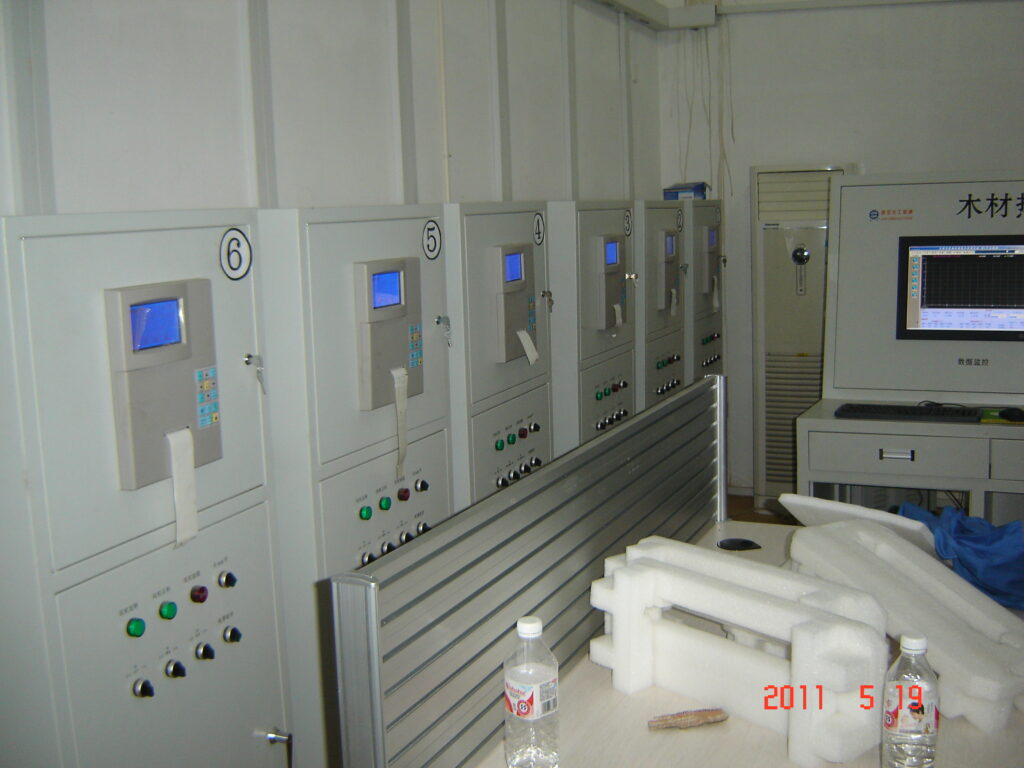

Heat treatment automatic control system:

This system is used for heat treatment of exported wood products that need quarantine. It can be connected with the computer or be used independently. It fulfils automatic real time printing without modification of 2 groups of indoor dry bulb temperature, 2 groups of web bulb temperature, 4 groups of water content rate, 4 groups of wood core temperature and interval.

Product Specification

TypeVolume in theory(M3)Stack Dimensions
(L×W×H)m		 Outer Dimensions
(L×W×H)m		Motor quantityPowerFanDrying source
MYHG-SR-80404000×3600×38004400×4800×530026Φ800Steam
MYHG-SR-120606000×5000×38006400×6200×530039
MYHG-SR-160808000×4800×38008400×6200×5300412
MYHG-SR-2001008000×6000×38008400×8000×5300515
