Power

6-30 kw

Motor Quantity

2-10

Fan Type

φ800

Conventional Drying Kiln | MYHG

Price:

Steam heating wood drying kiln uses the recycle steam as the heat source that keeps on decomposing, evaporating water content rate and lipid of the materials or the inner part of the products that need drying treatment so that the target of cleaning, drying and figuration can be achieved.

Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

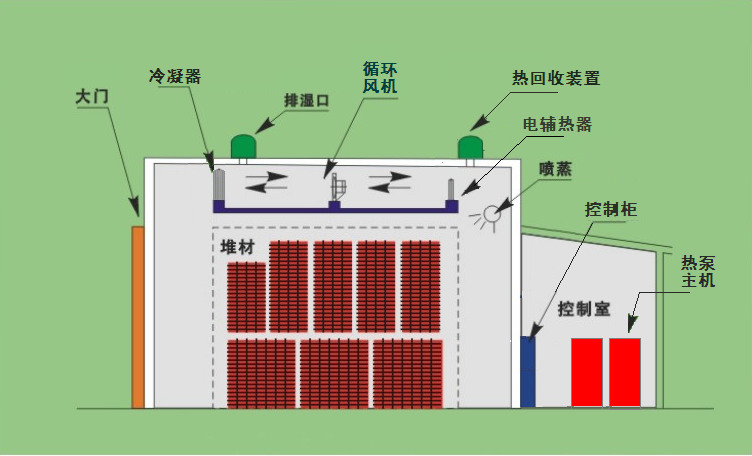

Structure of drying kiln:

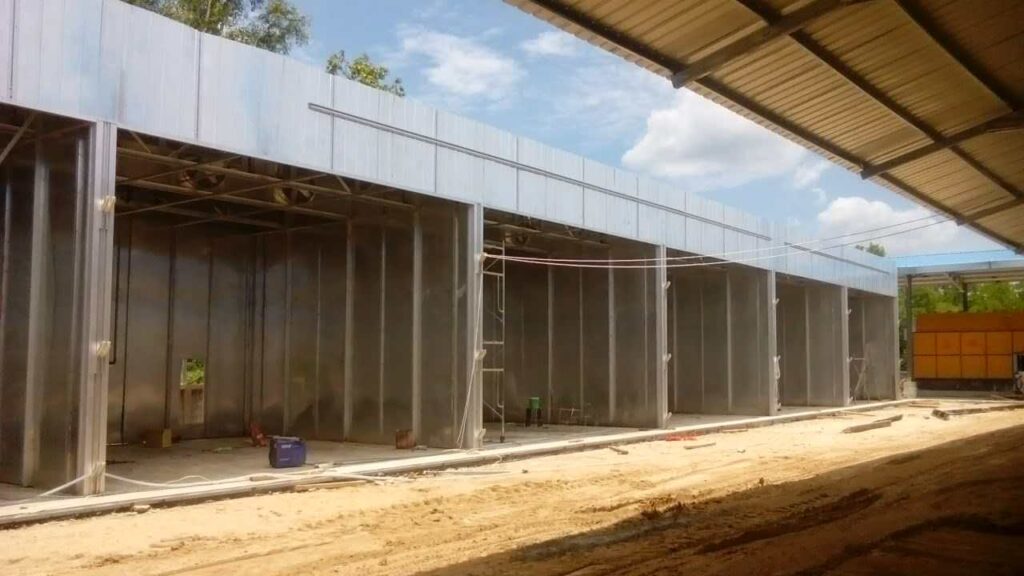

Al alloy structure, metal structure and civil construction brickwork structure.

Control system of drying kiln:

Semi-automatic control & automatic control.

Characteristics of automatic control system:
  • It has all functions of semi-automatic control system.
  • It can program 99 drying benchmarks.
  • Test and control method: complete automatic
  • Working method: continuous
  • Specification: (30m3 -200 m3 )
Characteristics of Semi-automatic control system:
  • The control system has complete functions and stable properties and easy for operation.
  • It shows all drying data at real time, including room temperature, humidity, water content rate of wood.
  • It checks and modify drying benchmarks at real time to guarantee good drying quality.

Product Specification

TypeVolume in theory（M3）Stack Dimensions（L×W×H）m Outer Dimensions（L×W×H）mMotor quantityTotal power（kw）Fan TypeHeat source
MYHG-60304.0×4.7×4.24.4×5.0×5.526φ800Steam
MYHG-80404.0×4.6×4.24.4×6.2×5.526
MYHG-100506.0×5.1×4.26.4×5.4×5.539
MYHG-120606.0×6.0×4.26.4×6.3×5.539
MYHG-160808.0×6.0×4.28.4×6.3×5.5412
MYHG-2001008.0×7.7×4.28.4×8.0×5.5515
MYHG-24012010×7.7×4.210.4×8.0×5.5618
MYHG-30015012×7.7×4.212.4×8.0×5.5824
MYHG-40020012×9.0×4.512.6×9.3×6.11030
