Power

37 kw

Log Dia.

48″

Max. Cut

140 mm

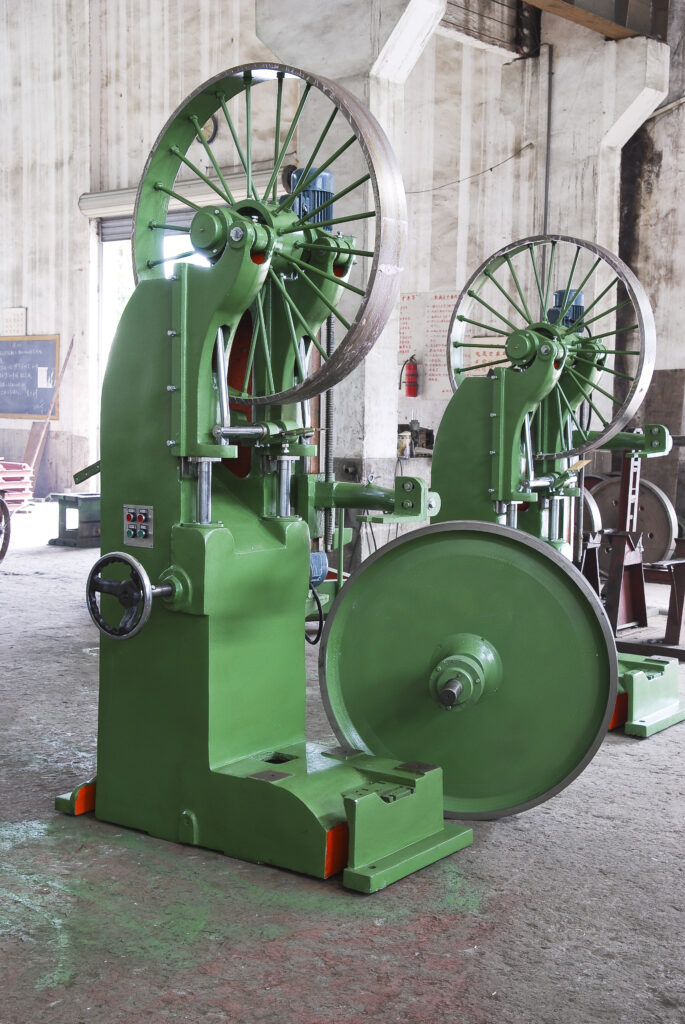

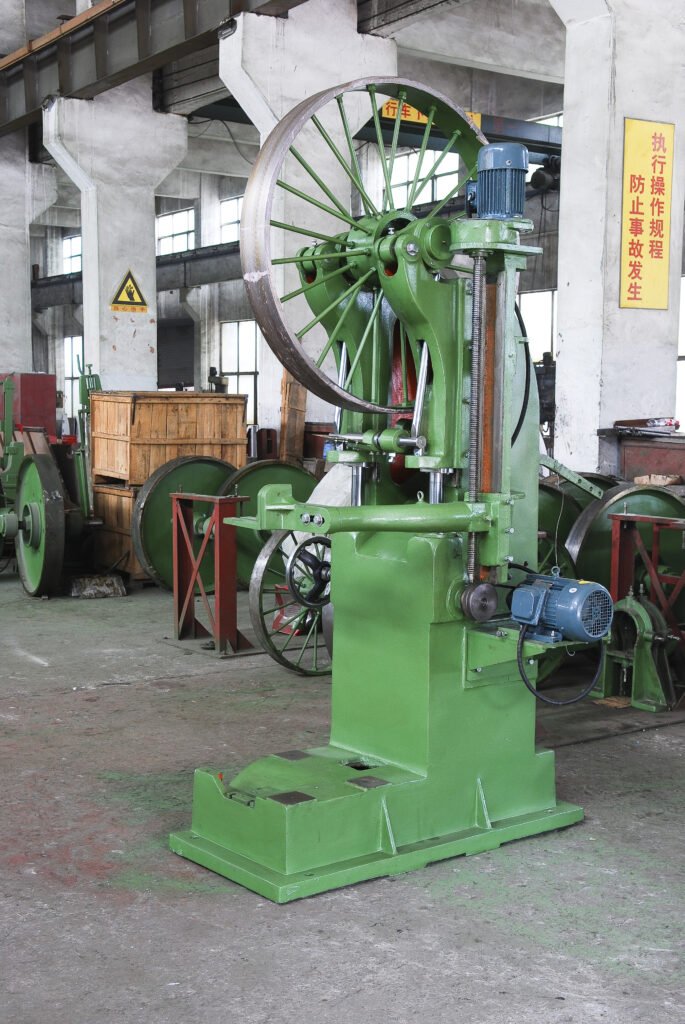

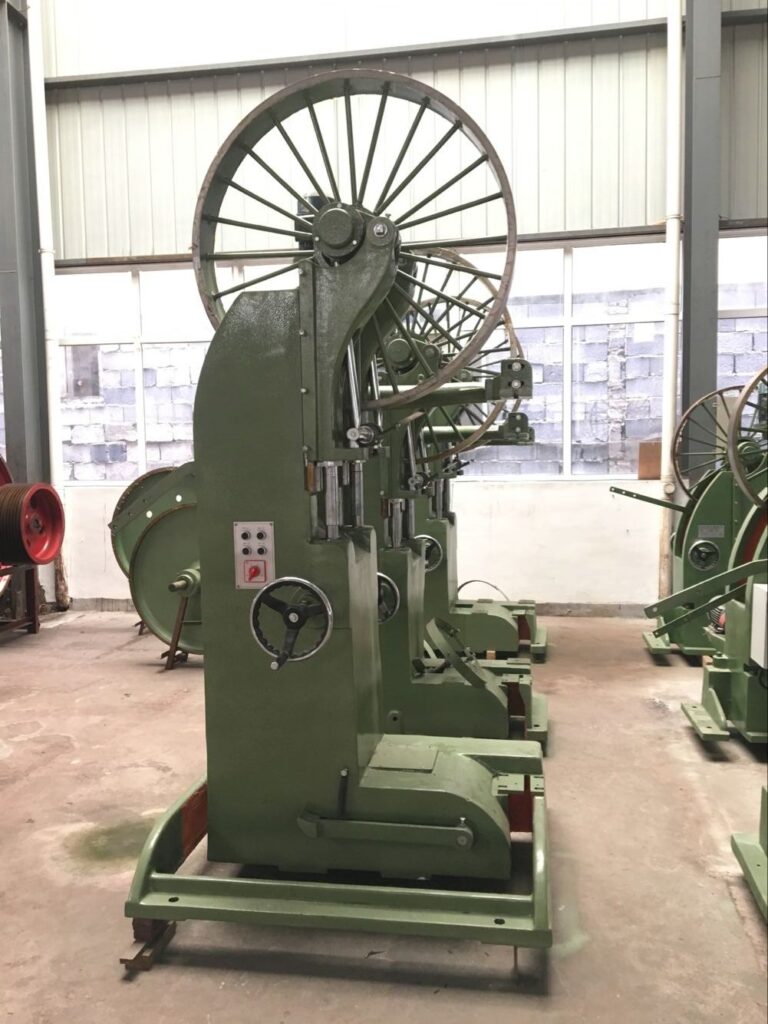

48-inch Wood Band Saw | MJ3113B

Price:

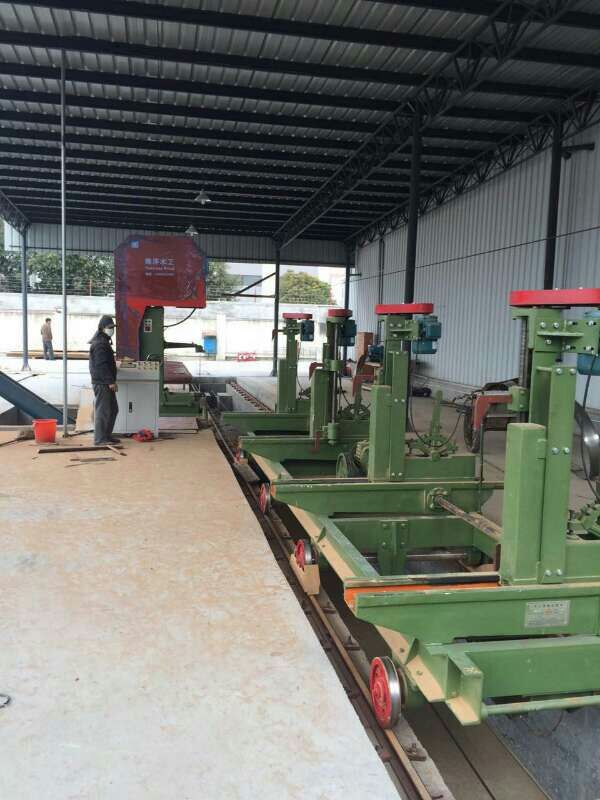

The machine is mainly used to longitudinally saw and re-saw large or middle diameter log, it is suit to cut log Φ0.5-1.3m. Its operation is efficient and balanced. Used with automatic carriage, it can expand processing range and improve product quality. It is the best option to saw large-diameter log for wood processing enterprise.

Quick Inquiry Download PDF

1-Year Warranty

Related Parts & Accessories

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add a Short Title Here

Use this space to add a short description. It gives enough info to earn a click.

Add an overline

Craft a captivating title for this section to attract your audience.

Call To Action

About This Product

Name

Specification

Saw wheel diameter

Φ1100mm

Saw wheel width

140mm

Rotary speed of saw wheel

720 r/min

Maximum cutting diameter

Φ1300mm

Main motor power

37kw

Total motor power

39.25kw

The size of saw blade( L×W×T)

8300*150*1.25mm

Dimension(L×W×H )

1975×1235×3710mm

 Weight

2800kg
